Description

This NDAA-compliant IP camera from the MEGApix Ai series delivers stunning 4K resolution at a real-time 30fps, featuring an advanced AI edge engine for enhanced video analytics. Harness the power of AI deep learning with object detection and tracking capabilities embedded in every MEGApix Ai camera. Equipped with Star-Light Plus technology for exceptional color video in near-total darkness and true Wide Dynamic Range (WDR) for optimal video quality in challenging lighting conditions, this camera is ideal for any surveillance situation. Its 2.7 to 13.5mm varifocal auto-focus lens ensures precision and versatility. Designed to endure tough environments, the camera boasts an IP67-rated, IK-10 impact-resistant vandal-proof housing, complete with CleanView self-cleaning dome treatment that repels water and grime. Furthermore, all MEGApix cameras are ONVIF conformant, guaranteeing seamless integration with any open platform solution available in the market.

Camera
Night Vision Distance100 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-4°F (-20°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/15 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameDigital Watchdog
ManufacturerDigital Watchdog
Manufacturer Part NumberDWCXSDE08MI
Product LineMEGApix Ai
Product ModelDWC-XSDE08MI
Product NameMEGApix DWC-XSDE08MI Network Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.7-13.5 mm
Lens IncludedYes
Maximum Focal Length13.50 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Auto Gain Control, Automatic White Balance, Cross Line Detection, Day/Night, Mirror, Motion Detection, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Smudge Resistant, Waterproof, Weather Resistant
Form FactorDome
Weight (Approximate)1.14 lb

Power Description
Input Voltage12V DC

Product Information

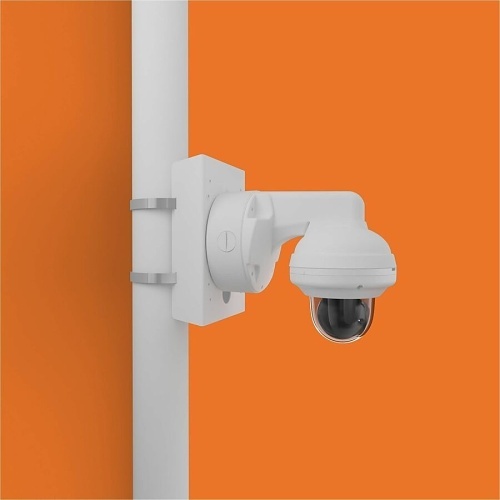

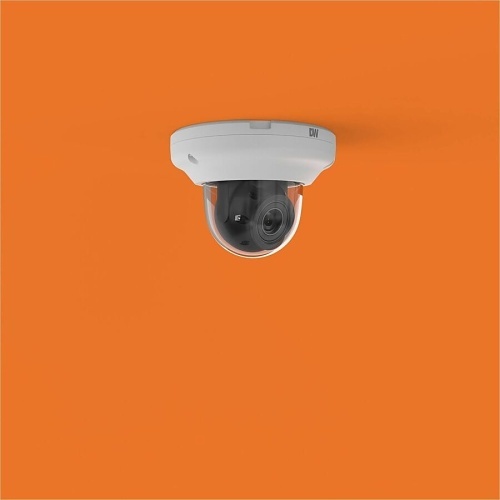

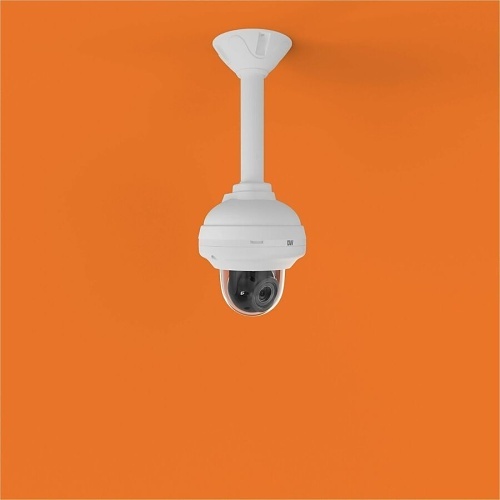

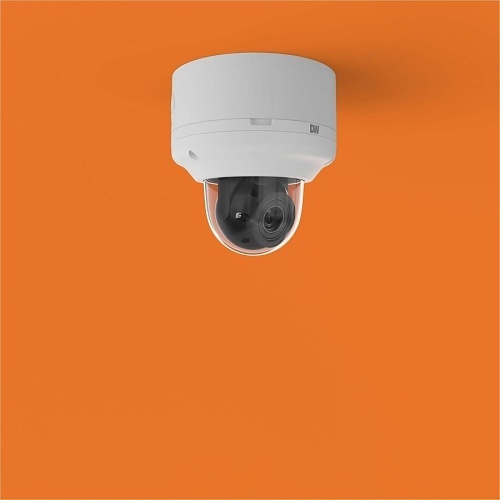

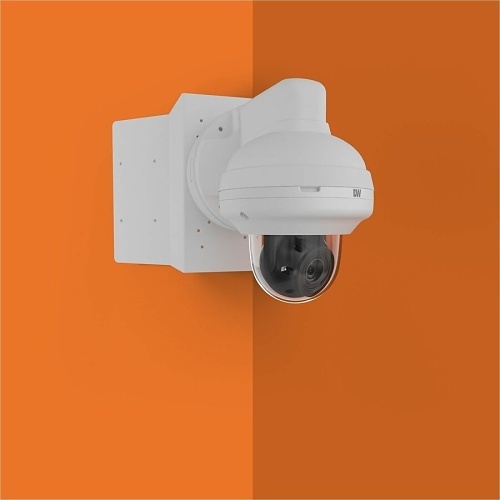

Mount TypeCeiling Mount, Corner Mount, Flush Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewHorizontal:33.1°~90.3° Vertical: 18.9°~49°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length2.70 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom5x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty5 Year
