Description

**Key Features**

– H.265 Compression Technology
– 30 fps recording at 1920×1080 with Wide Dynamic Range (WDR) Pro enabled
– 2.8~12 mm lens with remote focus capability
– Supreme Night Visibility (SNV) for optimal performance in low light conditions
– Wide Dynamic Range Pro for exceptional clarity in both extremely bright and dark environments
– Smart Stream III for optimized bandwidth efficiency
– Integrated infrared (IR) illuminators with a range of up to 30 meters
– IoT Security powered by Trend Micro
– Weather-resistant IP66-rated and vandal-resistant IK10-rated housing
– Built-in MicroSD/SDHC/SDXC card slot for onboard storage
– Integrated microphone

**Overview**

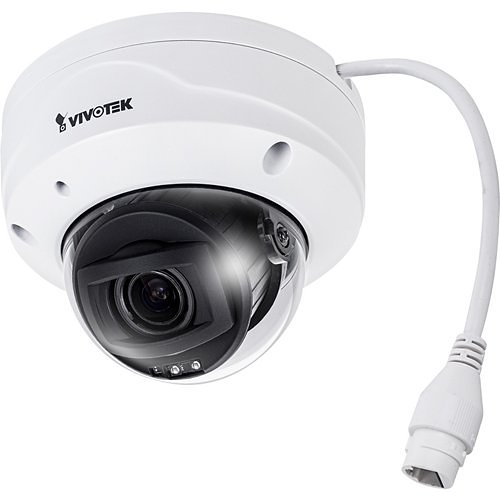

The FD9368-HTV is a versatile outdoor dome network camera leveraging H.265 video compression technology and a 2-megapixel sensor to deliver 1920×1080 resolution at 30 frames per second. Equipped with Supreme Night Visibility (SNV) and Wide Dynamic Range (WDR) Pro technology, this camera ensures high-quality imagery under challenging lighting conditions, including high contrast and low-light environments.

The camera offers a remote focus lens adaptable for various surveillance scenarios and features IR illuminators that provide effective night visibility over a distance of 30 meters. Designed for operation in harsh outdoor settings, the FD9368-HTV boasts robust IP66 and IK10 rated housing.

Thanks to Smart Stream III technology and support for the H.265 codec, the camera can significantly reduce bandwidth usage by up to 90% without compromising image quality. Additionally, the customizable Application Development Platform allows users to tailor specific applications to meet diverse needs in the evolving surveillance industry.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFD9368-HTV
Product ModelFD9368-HTV
Product NameFixed Dome Network Camera
Product SeriesC
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Maximum Focal Length12 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents Fixed Dome Network Camera Quick Installation Guide Alignment Sticker Screw Pack Cable Gland

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-FD8167A
Model Number ReplacesFD8167A

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Weight (Approximate)1.81 lb

Product Information
Diameter5.3"
Mount TypeBracket Mount, Conduit Box Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Number of IR LEDs2
Optical Zoom4.3x

Warranty
Limited Warranty24 Month
