Description

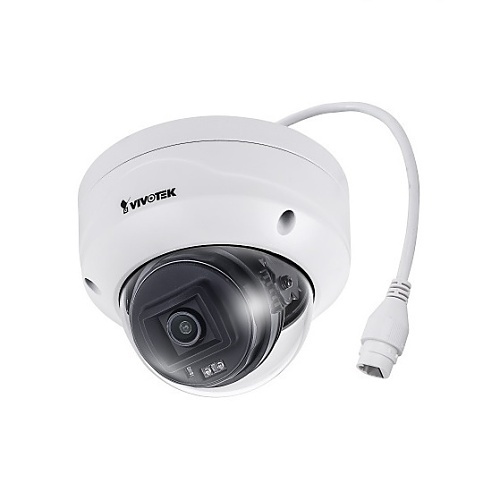

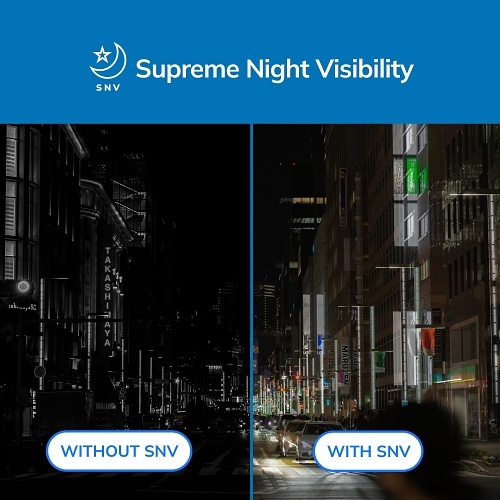

The FD9380-H is an advanced H.265 outdoor dome network camera that integrates cutting-edge surveillance technology. With a 5-megapixel sensor, it delivers a crisp resolution of 2560×1920 at 20 fps. This camera is equipped with SNV and WDR Pro technology, ensuring top-notch image quality in both high contrast and low light conditions. Available with a 2.8mm/3.6mm lens, the FD9380-H also features infrared illuminators that extend up to 30 meters, enhancing night-time visibility. Built for durability, this camera boasts an IP66 and IK10-rated housing, making it ideal for challenging outdoor environments.

The FD9380-H excels in bandwidth efficiency by incorporating Smart Stream III technology and H.265 codec support, achieving up to a 90% reduction in bandwidth while preserving exceptional image clarity. Furthermore, with the Application Development Platform, users can tailor applications to meet the specific needs of an increasingly diverse surveillance industry.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Operating Humidity0.9

Exposure
Longest Shutter Speed1/5 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFD9380-HF2
Product ModelFD9380-HF2
Product NameFD9380-HF2 Network Camera
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-FD9380H, T6-FD9389HTV
Model Number ReplacesFD9380-HF3, FD9389-HTV

Physical Characteristics
ColorWhite
Depth3.5"
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.6"
Weight (Approximate)1.19 lb
Width4.6"

Product Information
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate20 fps
Minimum Focal Length2.8 mm
Night VisionYes

Warranty
Limited Warranty2 Year
