in stock
In Stock
$317.03

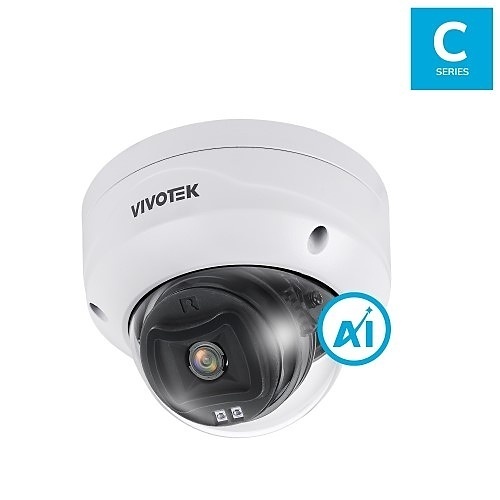

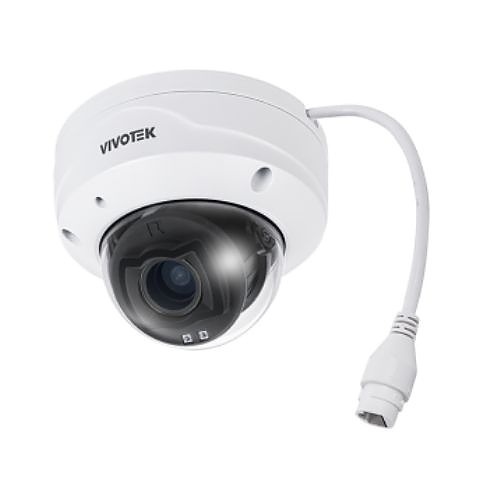

The 9383 is your entry point to intelligent security solutions. As the inaugural AI camera in the C-Series, it features a sophisticated Sony image sensor integrated with STARVIS 2 technology, offering 2.5 times greater dynamic range and enhanced light sensitivity. Equipped with Smart VCA and vision object analytics, this camera is a powerhouse of AI intelligence, streamlining your security systems to be more intuitive, efficient, and secure.
| Camera | |
| Night Vision Distance | 1181.1" |
| Wide Dynamic Range | 120 dB |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1920 |
| Environmental Conditions | |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 0.9 |
| Exposure | |
| Minimum Illumination | 0.055 lux|0.005 lux |
| General Information | |
| Brand Name | VIVOTEK |
| Manufacturer | VIVOTEK |
| Manufacturer Part Number | FD9383-HVF2 |
| Product Line | VORTEX |
| Product Model | FD9383-HVF2 |
| Product Name | Vivotek FD9383-HV Fixed Dome Network Camera |
| Product Series | C |
| Product Type | Network Camera |
| Interfaces/Ports | |
| HDMI | No |
| Lens | |
| Focal Length | 3.6 mm |
| Lens Included | Yes |
| Maximum Focal Length | 3.6 mm |
| Miscellaneous | |
| Environmental Certification | UL Listed |
| Environmentally Friendly | Yes |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Package Contents | alignment sticker, cable gland, Quick Installation Guide, screw pack |
| Physical Characteristics | |
| Durability | Dustproof, Impact Resistant, Vandalproof, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Height | 3.52" |
| Weight (Approximate) | 1.21 lb |
| Product Information | |
| Diameter | 4.61" |
| Length | 3.52" |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Effective Camera Resolution | 5MP |
| Field of View | Diagonal - 135.2°, Horizontal - 103.4°, Vertical - 75.3° |
| HD Recording | No |
| Lens Type | Fixed Focal Length |
| Maximum Aperture | f/2.0 |
| Maximum Frame Rate | 30 fps |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Number of IR LEDs | 2 |
| Video Signal Format | H.264, H.265, MPEG |
| Video | |
| Horizontal Resolution | 2560 |
