Description

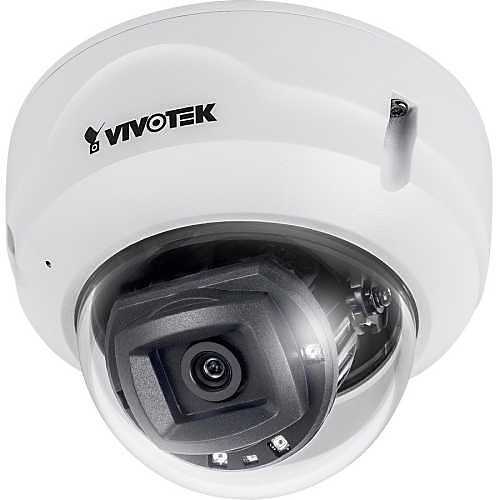

The FD9389-v2 series from VIVOTEK is a high-performance H.265 network dome camera designed for indoor surveillance, featuring a 5-Megapixel sensor that delivers a resolution of 2560 x 1920 at 30 frames per second. Thanks to advanced SNV and WDR Pro technology, this series captures exceptional quality images in both high contrast and low-light conditions.

The series provides flexibility with two lens options: fixed-focal and remote focus lenses, suitable for diverse security requirements. It is equipped with IR illuminators that have a 30-meter range, ensuring enhanced night-time visibility. For robust outdoor surveillance, the camera is encased in durable IP66 and IK10 rated housing to withstand challenging environments.

Utilizing Smart Stream III and H.265 codec support, the FD9389-v2 series significantly reduces bandwidth consumption by up to 90%* while maintaining superior image quality. Additionally, the series incorporates AI-powered smart motion detection, focusing on human presence over irrelevant motion.

Key Features:
– Captures video at 30 fps in 2560 x 1920 resolution and 60 fps in 1920 x 1080 resolution
– WDR Pro (120 dB) ensures better visibility in high contrast scenes
– Built-in IR illuminators effective up to 30 meters
– Smart IR Technology prevents overexposure
– Enhanced security with Trend Micro IoT protection
– Vandal-proof IK10-rated and weather-proof IP66-rated housing
– Features a 2.8 ~ 10mm motorized lens

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Illumination0 lux
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity98%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFD9389-EHTV-V2
Product ModelFD9389-EHTV-v2
Product NameFD9389-EHTV-v2 Fixed Dome Network Camera
Product SeriesV
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/1.8

Miscellaneous
Features3D Noise Reduction, Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in Microphone, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, Face Detection, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Shock Detection, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents FD9389-EHTV-v2 Fixed Dome Network Camera Quick Installation Guide Alignment Sticker Screw Pack

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesT6-FD9389HTV
Model Number ReplacesFD9389-HTV

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandalproof, Waterproof, Weatherproof
Form FactorDome
Weight (Approximate)1.34 lb

Product Information
Diameter5.1"
Mount TypeBracket Mount, Conduit Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal)
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.74
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs4
Optical Zoom3.6x

Warranty
Limited Warranty36 Month
