Description

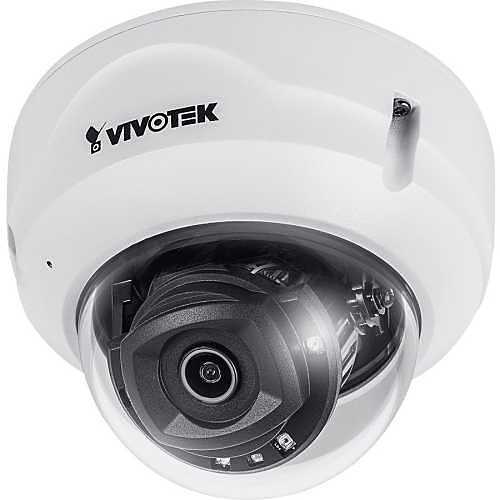

The FD9389-v2 series is a cutting-edge H.265 indoor dome network camera equipped with a 5-megapixel sensor, delivering a crystal-clear resolution of 2560 x 1920 at 30 frames per second. With advanced SNV and WDR Pro technology, this series excels in capturing high-quality imagery in both high-contrast and low-light conditions.

Designed to cater to diverse security monitoring needs, the FD9389-v2 series provides users with two lens configurations: fixed-focal and remote focus. Enhanced with IR illuminators capable of a 30-meter effective range, this camera ensures superior night vision. It boasts an IP66 and IK10-rated enclosure, making it ideal for robust surveillance in challenging outdoor environments.

Utilizing Smart Stream III technology and H.265 codec, the FD9389-v2 series significantly optimizes bandwidth usage by up to 90%, without compromising on image quality. In addition, it incorporates AI-powered smart motion detection, pinpointing human activities and minimizing background interference.

Key Features:
– 30 fps at 2560×1920 resolution and 60 fps at 1920×1080 resolution
– WDR Pro (120 dB) for enhanced visibility in high-contrast scenarios
– Built-in IR illuminators effective up to 30 meters with smart IR technology to prevent overexposure
– Integrated Trend Micro IoT security
– Rugged IK10-rated vandal-proof and IP66-rated weather-proof housing
– Available with a 2.8mm fixed lens option

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Illumination0 lux
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature122°F (50°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity98%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFD9389-EHV-V2
Product ModelFD9389-EHV-v2
Product NameFD9389-EHV-v2 Network Camera
Product SeriesV
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Features3D Noise Reduction, Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in Microphone, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, Face Detection, Gain Control, Highlight Compensation (HLC), Human Detection, Motion Detection, Password Protection, Privacy Masking, SD Card Local Storage, Shock Detection, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor
Package Contents FD9389-EHV-v2 Network Camera Quick Installation Guide Alignment Sticker Screw Pack

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandalproof, Waterproof, Weatherproof
Form FactorDome
Weight (Approximate)1.33 lb

Product Information
Diameter5.1"
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of View103° (Horizontal), 76° (Vertical), 134° (Diagonal)
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs4

Warranty
Limited Warranty36 Month
