Description

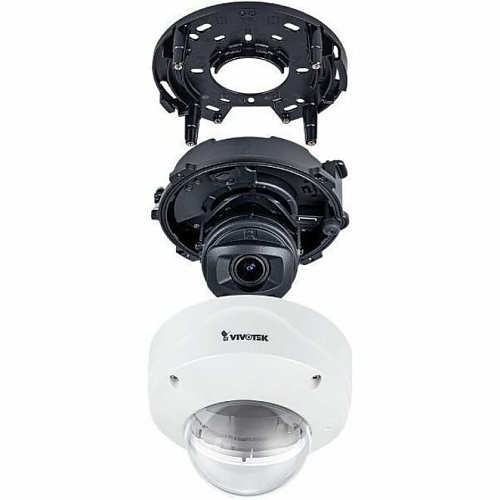

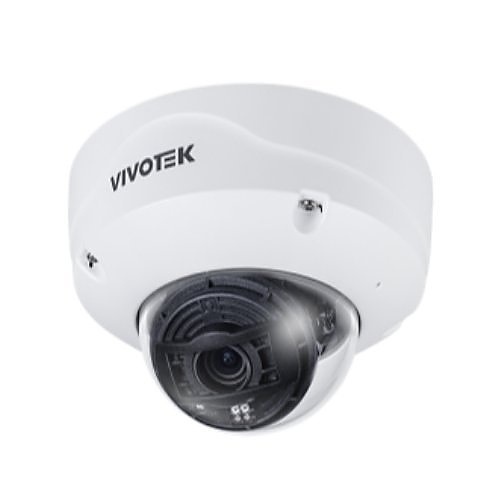

The VIVOTEK FD9391-EHTV-v2 is an advanced outdoor fixed dome surveillance camera offering impressive 3840×2160 (4K/8MP) resolution at up to 30 fps. This robust, weather-resistant network camera is equipped with a built-in microphone, I/O functionalities, and incorporates cutting-edge VIVOTEK SNV, WDR Pro, and Smart IR III technologies. These features ensure superior image quality even in challenging lighting conditions, both low light and high contrast environments. The camera also boasts comprehensive built-in cybersecurity measures and AI-driven video analytics. With ratings of IP66, IP67, IP6K9K, IK10+, and NEMA 4X, along with a wide operating temperature range from -40°C to 60°C without the need for heaters, it is perfectly suited for diverse outdoor video surveillance applications.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity98%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameVIVOTEK
Edge EnabledYes
ManufacturerVivotek, Inc
Manufacturer Part NumberFD9391EHTVV2
Product ModelFD9391-EHTV-v2
Product NameFixed Dome Network Camera
Product SeriesS
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.4-10.2 mm
Lens IncludedYes
Maximum Focal Length10.20 mm

Miscellaneous
FeaturesAudio Detection, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in Microphone, Day/Night, Face Detection, Highlight Compensation (HLC), Human Detection, Vehicle Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package ContentsFixed Dome Network CameraQuick installation guideproduct labelsalignment stickerL-shaped wrenchscrew packwaterproof accessory packsunshieldand more below, conduit bracket, I/O cable

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandalproof, Waterproof, Weatherproof
Form FactorDome
Weight (Approximate)3.06 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter6.9"

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of View110° ~ 43° (Horizontal) 57° ~ 24° (Vertical) 133° ~ 49° (Diagonal)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.38
Maximum Frame Rate30 fps
Minimum Focal Length4.40 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs4
Optical Zoom2.3x

Warranty
Limited Warranty36 Month
