Description

The 35 Series AI IP cameras deliver outstanding image clarity, even in low-light environments, and feature high-resolution infrared capabilities to monitor expansive areas both day and night. These state-of-the-art surveillance cameras boast advanced AI-driven motion detection focused on distinguishing between human and vehicle movements, thereby minimizing false alarms. Additionally, they support audio and alarm interfaces for seamless local alarm integration. The cameras are designed for streamlined system integration, straightforward installation, and secure data transmission—enhancing compliance with regulations, reducing installation and operational expenses, and boosting overall productivity and efficiency.

Features & Benefits:

  • Fully compliant with NDAA (National Defense Authorization Act), ensuring no inclusion of materials from restricted companies or subsidiaries under Section 889
  • Available resolutions from 2 MP (2592×1944) to 8 MP (3840×2160) for high-definition video surveillance
  • Various form factors and lens options, including micro dome, rugged dome, ball, bullet, and speed dome (PTZ) for versatile installations
  • True day/night capability offers vibrant color daytime imagery and sharp monochrome footage at night with a removable IR cut filter
  • Outstanding low-light performance through 2D/3D noise reduction, optimizing storage and bandwidth with smart codecs
  • True WDR (120 dB) technology ensures images are free from glare and balanced in contrast
  • Compliant with ONVIF Profiles S, G, and T for interoperability with other video surveillance systems
  • Smart IR Technology ensures even illumination with IR LEDs in low-light or nighttime conditions
  • Durable and weather-resistant (IP66/IP67) with impact resistance (IK10, model dependent)
  • Stream encryption from camera to MAXPRO and Series 35 NVRs using AES256 for secure data protection
  • Integrated smart analytics like people counting, intrusion detection, loitering, and smart motion detection, enhancing situational awareness while reducing false alarms
  • Remote configuration, motorized zoom, and autofocus accessible via web client or NVR
  • Multi-language graphical user interface for user-friendly operation
Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/8 Second
Shortest Shutter Speed1/32000 Second

General Information
Brand NameHoneywell Commercial Security
ManufacturerHoneywell International, Inc
Manufacturer Part NumberHC35W45R3
Product Line35 Series
Product ModelHC35W45R3

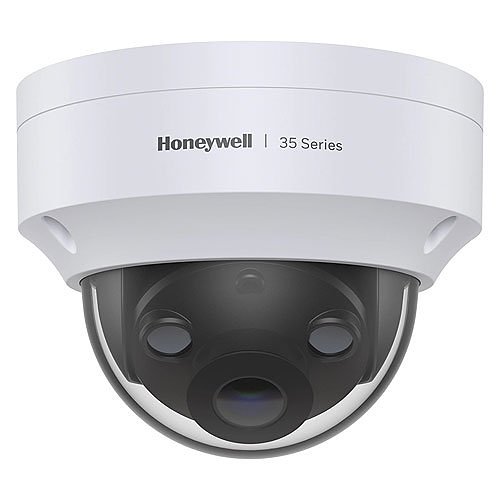

Product Name3MP/5MP/8MP IP WDR IR Rugged Mini Dome Camera
Product Series35
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
Environmental CertificationRoHS
Environmentally FriendlyYes
Features2D Noise Reduction, 3D Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Defog, Gain Control, Highlight Compensation (HLC), Rugged Design, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesH4W4PER3, HC30W45R3
Model Number ReplacesHC30W45R3H4W4PER3

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorMini Dome
Product ColorSignal White
Weight (Approximate)1.23 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.3"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH:93°, V:68°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2.0
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Video Signal FormatNTSC, PAL

Warranty
Limited Warranty5 Year
