**Advanced Traffic and Vehicle Detection Solutions**

Harnessing embedded deep learning algorithms, this camera excels in license plate capture and recognition. It achieves high accuracy with both standard and complex plate structures, significantly surpassing traditional technologies. Features like blocklist and allowlist enable effective plate categorization and customized alarm triggers.

Key Features:
– **High-Resolution Imaging**: Offers superior image clarity with 4 MP resolution.
– **Low-Light Performance**: Utilizes ColorVu technology for exceptional results in low-light conditions.
– **Bandwidth and Storage Efficiency**: Employs H.265+ compression for optimized data management.
– **Superior Backlight Handling**: Provides clear images in challenging lighting with 140 dB true WDR technology.
– **Versatile Application Support**: Accommodates diverse needs with 5 streaming options.
– **Robust Build Quality**: Designed for durability with IP67 water and dust resistance and IK10 vandal-proof rating.
– **Efficient Installation**: Features unique PTRZ capability for streamlined setup.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2688 x 1520

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberIDS-2CD7547G0/P-XZHSY
Product LineDeepinView
Product ModelIDS-2CD7547G0/P-XZHS(Y)

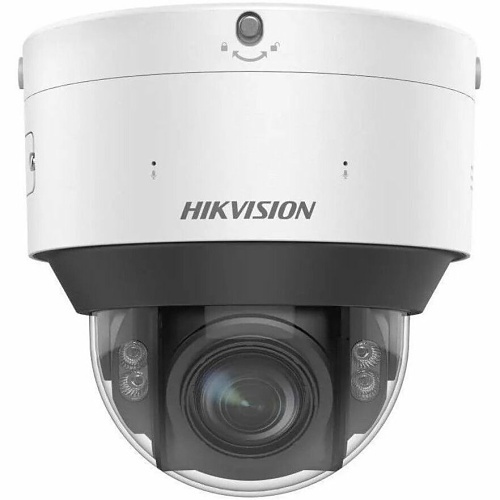

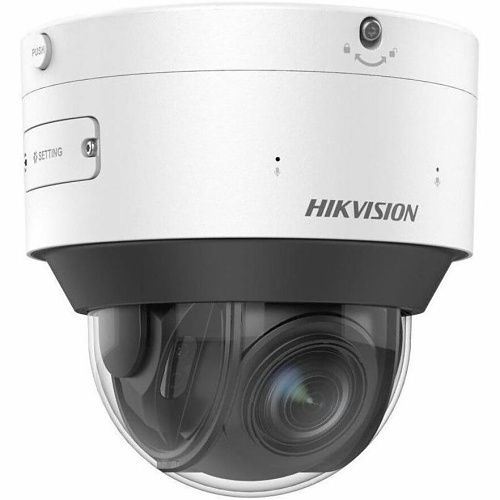

Product Name4 MP ColorVu DeepinView Varifocal Dome Network Camera
Product SeriesSmart
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm
Minimum Aperturef/1.2

Miscellaneous
Environmental CertificationRoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Back Light Compensation (BLC), Cross Line Detection, Highlight Compensation (HLC), Human Detection, Mirror, Noise Detection, Noise Reduction, Region of Interest, Video Content Analytics, Video Management System
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof
Form FactorDome
Weight (Approximate)4.63 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter6.3"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Vertical Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal FOV 104.2° to 44.1°, Vertical FOV 55.3° to 24.8°, Diagonal FOV 126.8° to 51.1°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1
Maximum Frame Rate60 fps
Minimum Focal Length2.80 mm
Night VisionYes
Night Vision TypeInfrared/Color
Optical Zoom4.3x

Video
Analog Video Signal FormatCVBS
