Description

**Functionality Overview**

**Face Counting**
Utilizing advanced embedded deep learning algorithms, this surveillance camera leverages multiple AI-driven intelligences. It concurrently performs people counting and facial feature extraction. By comparing with the integrated facial database, the system eliminates duplicate entries, ensuring accuracy in personnel counting while simultaneously triggering face alarms for efficient access control and occupancy monitoring.

**Hard Hat Detection**
With sophisticated deep learning integration, the camera is adept at monitoring designated areas to identify individuals present. It specifically detects the presence of hard hats, capturing images of heads and issuing alerts if an individual is not wearing one, enhancing safety compliance.

**Multi-Target-Type Detection**
Employing cutting-edge deep learning algorithms, the camera captures and analyzes facial and body features within a designated area, extracting details such as gender, age, and clothing color. This facilitates the structured modeling of individuals, enabling comprehensive data collection for enhanced analytics.

**Queue Management**
Powered by embedded deep learning algorithms, the camera meticulously monitors queue lengths and individual waiting times. Enhanced body feature detection algorithms improve accuracy by effectively filtering out erroneous targets.

**Metadata Utilization**
Metadata encompasses specific instances of application data, playing a crucial role in third-party application development by providing structured insights.

**Smooth Streaming Technology**
The smooth streaming feature addresses video quality optimization across varying network conditions. It dynamically adjusts streaming bitrate and resolution to minimize latency and mosaic artifacts under poor network conditions. In more robust network environments, it transmits redundant data for backend error correction, mitigating issues caused by packet loss and error rates.

**Anti-Corrosion Coating (-Y)**
The camera features a highly weatherproof and durable coating adhering to AAMA2604-02 and Qualicoat (Class 2) specifications with two-layer special spraying technology. This ensures long-term anti-corrosion performance and robust physical protection. Additionally, exposed screws constructed from SUS316 material provide high resistance to corrosion, aligning with NEMA 250-2018 anti-corrosion standards.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberIDS-2CD7586G0-IZHSY 2.8-12MM
Product LineDeepinView
Product ModelIDS-2CD7586G0-IZHSY

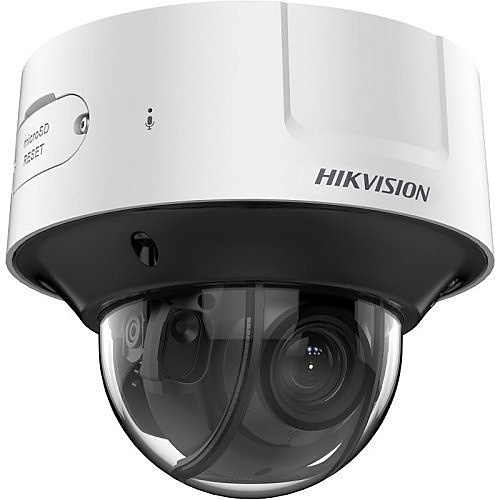

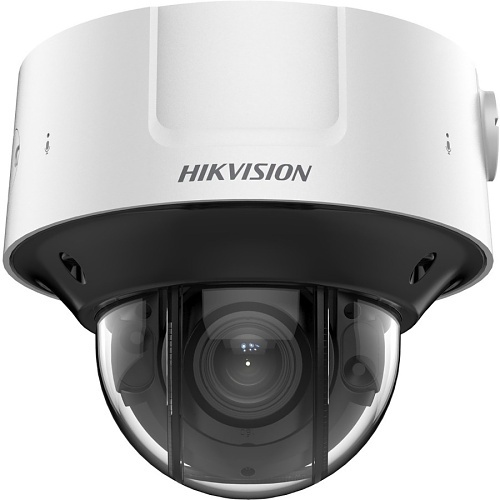

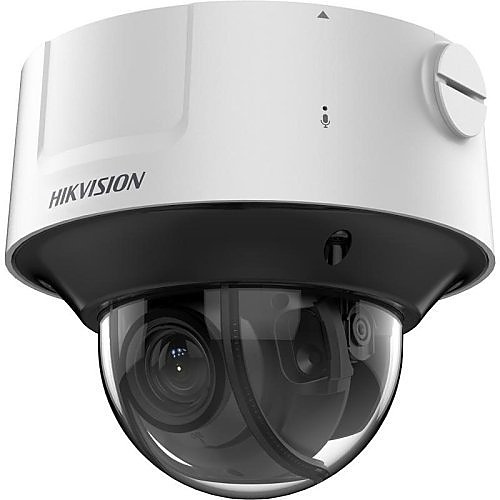

Product Name8 MP IR Varifocal Dome Network Camera
Product SeriesDeepinview
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm
Minimum Aperturef/1.2

Miscellaneous
Features3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in Card Reader, Cross Line Detection, Day/Night, Defog, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandalproof, Waterproof
Form FactorDome
Weight (Approximate)3.42 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.4"
Mount TypeCorner Mount, Pendant Mount, Vertical Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of Viewhorizontal FOV 112.3° to 41.2°, vertical FOV 58° to 23.1°, diagonal FOV 137.3° to 47.3°
HD RecordingYes
Lens Mount TypeIntegrated
Lens TypeMotorized
Maximum Aperturef/2.5
Maximum Frame Rate30 fps
Minimum Focal Length2.80 mm
Optical Zoom4.3x
