Description

**Camera Surveillance Systems**: The Sarix Value IBV Series cameras are an excellent choice for overt surveillance, effectively discouraging criminal activities. These cameras deliver outstanding image quality, with impressive low-light performance, accurate color reproduction, and true wide dynamic range (WDR) for enhanced visibility in challenging lighting conditions. Equipped with built-in IR illumination, they provide comprehensive coverage even in complete darkness. The cameras come with vari-focal lenses, offering flexible fields of view. Boasting an IP66-rated ingress protection, the Sarix Value IBV Series is suitable for diverse indoor and environmental applications.

**Video Streaming**: Sarix Value Series cameras support three simultaneous video streams, which can be encoded using efficient H.265 or H.264 High/Main profiles, or MJPEG. These streams are customizable with various resolutions and frame rates. Pelco Smart Compression is compatible with both H.264 and H.265, optimizing storage and bandwidth usage.

**System Integration**: Sarix Value Series cameras integrate seamlessly with VideoXpertâ„¢, Pelco’s video management system, and other leading Video Management Systems, thanks to the ONVIF Profile S, T, and G compliance.

**Web Interface**: Pelco cameras utilize a standard web browser interface, facilitating easy remote setup and management. The interface offers convenient one-step configuration for features such as color, exposure, flicker control, wide dynamic range, and streaming.

**Basic Video Analytics**: Sarix Value Series cameras are equipped with essential video analytics, including Simple Motion Detection, Camera Tampering, and Audio Detection. Simple Motion Detection allows recording or alarm triggering upon detecting movement in designated zones or the entire scene. A Camera Tampering alarm activates if the lens is obstructed or repositioned. An Audio Detection alarm is sent when volume levels exceed set thresholds.

**Smart Compression Technology**: This technology reduces bandwidth and storage demands by up to 70%, allowing users to balance storage savings and image quality effectively. Pelco’s Smart Compression Technology dynamically analyzes motion within live video in real-time, smartly compressing unnecessary details while retaining crucial scene information. The Dynamic GOP feature further decreases I-frames in low-motion scenes, offering significant bandwidth savings in areas like store rooms with limited activity.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1920

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature14°F (-10°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.2 lux
Shortest Shutter Speed1/32000 Second

General Information
Brand NamePelco by Motorola Solutions
ManufacturerMotorola Solutions, Inc.
Manufacturer Part NumberIMV529-1ERS
Product LineSarix
Product ModelIMV529-1ERS

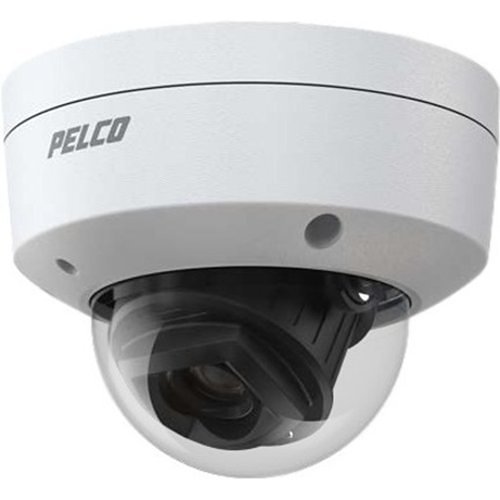

Product Name5MP 3-9MM IR Environmental Mini Dome Camera
Product SeriesSarix Value
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.4-9.4 mm
Lens IncludedYes
Maximum Focal Length9.4 mm
Minimum Aperturef/1.4

Miscellaneous
Features3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Defog, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, SD Card Local Storage, Tamper Detection, Tampering Alarm, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor
Package Contents Quick Start Guide Alignment Sticker Screw Pack Cable Gland

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorMini Dome
Weight (Approximate)1.81 lb

Product Information
Diameter5.3"
Mount TypeCeiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Effective Camera Resolution5MP
Field of View30° ~ 90° (Horizontal) 23° ~ 65° (Vertical) 38° ~ 115°(Diagonal)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.8
Maximum Frame Rate20 fps
Minimum Focal Length3.4 mm
Optical Zoom2.7x
