Description

The WizSense Series integrates Dahua’s advanced Analytics+ platform with a user-friendly interface, featuring Smart Motion Detection+ and Perimeter Protection designed to focus exclusively on human and vehicle detection, thereby reducing false alarms and ensuring critical video surveillance. With a focus on affordability, WizSense devices deliver robust security solutions suitable for small to medium-sized businesses.

**System Overview**

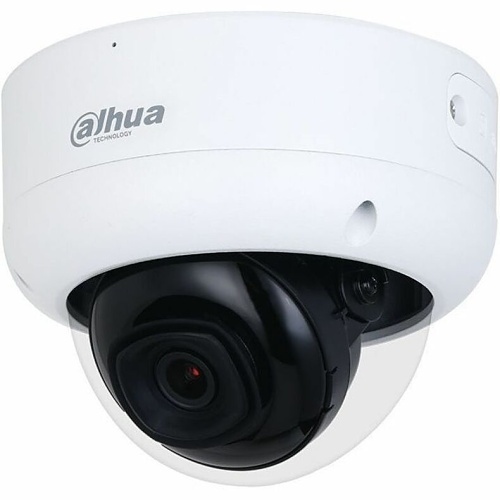

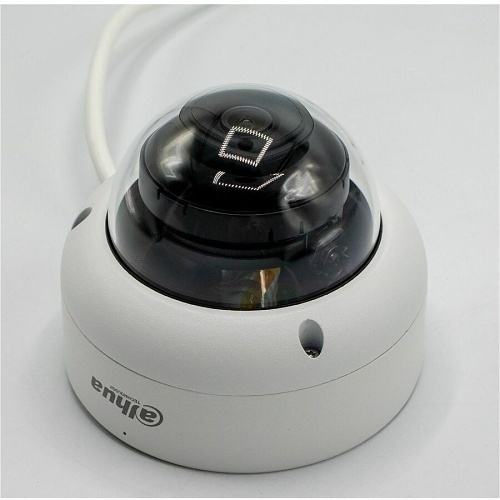

The Dahua 4MP Enhanced Starlight Network Dome Camera is adept for various applications, accentuated by features like Enhanced Starlight, True Wide Dynamic Range, and IR illumination, allowing optimal performance across diverse lighting conditions.

**Functions**

**Perimeter Protection**

Dahua’s Analytics+ suite includes Tripwire and Intrusion capabilities, offering customizable tripwires based on object types, automating surveillance in restricted zones. This feature enhances accuracy and reduces false alarms triggered by lights, weather changes, vegetation, or animals with minimal pixel requirement.

**Smart Motion Detection+**

Part of Dahua’s Analytics+ technology, Smart Motion Detection+ refines alarm precision by discerning between human or vehicle movement and irrelevant motions like those from trees, weather, or animals, triggering alerts only upon significant detection.

**AI Scene Self-adaptation (AI SSA)**

AI Scene Self-adaptation (AI SSA) leverages deep learning algorithms to evaluate and adapt to environmental conditions, such as rain or low light, for optimal image clarity without manual intervention during setup or environmental changes.

**Enhanced Starlight Technology**

For low-light scenarios, Dahua’s Starlight Ultra-low Light Technology provides superior light sensitivity, capturing vibrant colors in dim conditions up to 0.005 lux, while maintaining image clarity through advanced optical features.

**Smart H.265+**

The Smart H.265+ codec enhances video compression efficiency by employing a scene-adaptive encoding strategy, significantly reducing bit rates and storage by up to 70% compared to standard H.265 while maintaining high-quality video.

**Cybersecurity**

Dahua network cameras incorporate robust cybersecurity features including security authentication, access control, trusted protection, encrypted transmission, and storage, bolstering defenses against unauthorized access and data breaches.

**ArcticPro**

Designed for extreme environments, the Dahua ArcticPro Series utilizes temperature-resistant components and waterproof enclosures for effective operation at temperatures as low as -40°C (-40°F) without additional heating, optimizing power usage while delivering high-resolution video in frigid conditions.

**Environmental**

Rigorously tested and certified with an IP67 Ingress Protection rating, these cameras are ideal for demanding outdoor applications, ensuring resilience against dust and water immersion.

Camera
Image Sensor TypeCMOS
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2688 x 1520

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameDahua
ManufacturerZhejiang Dahua Technology Co., Ltd.
Manufacturer Part NumberN43CL62
Product LineWizSense
Product ModelN43CL62
Product Name4MP Enhanced Starlight Network Dome Camera
Product SeriesWizenet
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.80 mm

Miscellaneous
Country of OriginCN
FeaturesAudio Compression, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Gain Control, Mirror, Motion Detection, Noise Reduction, Privacy Masking, White Balance
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesVD-N43AL52
Model Number ReplacesN43AL52

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height3.2"
Product ColorWhite
Width4.3"

Power Description
Input Voltage12V DC

Product Information
Diameter4.3"
Mount TypeBracket Mount, Ceiling Mount, Junction Box Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution4MP
Field of ViewHorizontal: 107° Vertical: 56° Diagonal: 127°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Number of IR LEDs3
Video FormatsH.264, H.264B, H.264H, H.265, MJPEG, Smart H.264+, Smart H.265+

Warranty
Limited Warranty5 Year
