Description

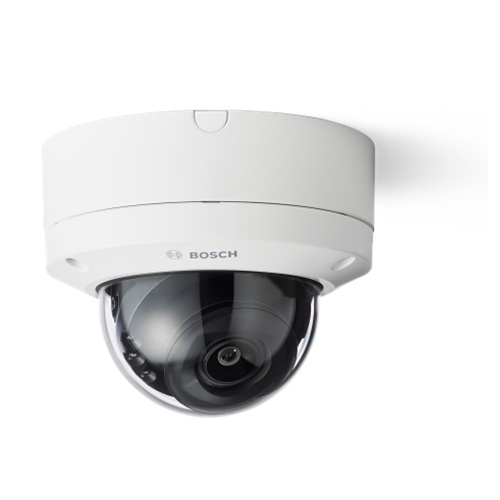

The FLEXIDOME outdoor 3100i IR is a cutting-edge solution for outdoor surveillance applications. It is equipped with a 2MP sensor and an integrated varifocal lens, delivering sharp, detailed images with a customizable field of view. Enhanced with infrared (IR) capabilities, the camera excels in low-light environments where ambient lighting is insufficient. It features built-in IVA Pro Buildings for advanced, deep learning-based detection, ensuring that only pertinent alarms are triggered. Security is enhanced with TPM (Trusted Platform Module), providing safe storage for certificates and keys essential for authentication and encryption. The camera boasts IK10 and IP66 ratings for both impact and weather resistance, safeguarding it against vandalism and harsh outdoor conditions. A wide array of compatible accessories supports diverse mounting options, ensuring installation flexibility.

Camera
Night Vision Distance1176"

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature22°F
Operating Humidity5-95 %|5-100 %

Exposure
Longest Shutter Speed1/25 s
Shortest Shutter Speed1/15,000 s

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE-3702-AL
Product LineFlexiDome
Product ModelNDE-3702-AL
Product NameFixed dome 2MP 3.3-10.2mm IP66 IK10 IR
Product Series3100i
Product TypeNetwork Camera

Interfaces/Ports
HDMINo

Lens
Focal Length3.3 mm-10.2 mm
Lens IncludedYes
Maximum Focal Length3.3 mm
Minimum Aperturef/1.6

Miscellaneous
Environmental CertificationWEEE
Environmentally FriendlyYes
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.37"
Weight (Approximate)1.74 lb

Product Information
Diameter5.39"
Mount TypeSurface Mount

Storage
Storage TypeMemory Card

Technical Information
Effective Camera Resolution2MP
Field of ViewHorizontal: 96° to 29° Vertical: 70° to 22°
HD RecordingYes
Maximum Aperturef/3.29
Maximum Frame Rate30 fps
Minimum Focal Length10.2 mm
Night VisionYes
Night Vision TypeInfrared

Video
Horizontal Resolution1920
