Description

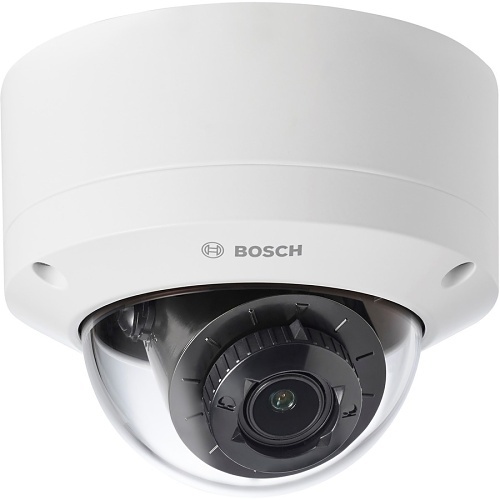

The camera is a highly adaptable and professional-grade surveillance solution designed for outdoor security monitoring. It delivers outstanding image clarity, starlight performance, and High Dynamic Range (HDR) technology at HD 1080p resolution, ensuring detailed visuals for demanding security and surveillance network applications. Equipped with integrated Intelligent Video Analytics Pro (IVA Pro), it enhances situational awareness and generates relevant alerts.

Featuring a 1/2.8” sensor and HDR capabilities at HD 1080p resolution, the camera excels in low-light conditions. Its modular design incorporates a convenient click-and-rotate mechanism for mounting, requiring no additional hardware for secure installation, and is compatible with a variety of mounting options.

The camera supports H.265 high-efficiency video encoding, built on the robust H.264 and H.265/HEVC platforms. It delivers high-quality, high-resolution video while minimizing network load. H.265, with its doubled encoding efficiency, is the preferred compression standard for IP video surveillance systems.

Pre-installed with IVA Pro Buildings, the camera utilizes advanced deep-learning detection and tracking for both individuals and vehicles, suitable for environments ranging from sterile zones to busy locations. It effectively withstands false triggers from harsh conditions like rain, wind, snow, and shadows, reliably detecting, tracking, and categorizing objects. An intelligent set of alarm and counter rules allows for precise alerts when predefined conditions are met, and facilitates forensic searches through recordings with high efficiency. Configuration is straightforward, eliminating the need for calibration. Additionally, the camera can be optionally licensed with IVA Pro Perimeter or IVA Pro Traffic to tailor analytics to specific enterprise security requirements.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE5702A
Product LineFlexiDome
Product NameFixed Dome 2MP HDR 3.4-10.2mm IP66
Product Series5100i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.4-10.2 mm
Lens IncludedYes
Maximum Focal Length10.20 mm

Miscellaneous
FeaturesDay/Night, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesPB-NDE4512A
Model Number ReplacesNDE-4512-A

Physical Characteristics
ColorWhite
Color FamilyDual Color
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.8"
Product ColorBlack, White
Weight (Approximate)2.49 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.8"
Mount TypeCeiling Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view 105º - 31º Vertical field of view 57º - 18º
HD RecordingYes
Lens TypeVarifocal
Maximum Frame Rate60 fps
Minimum Focal Length3.40 mm
Optical Zoom3x
