Description

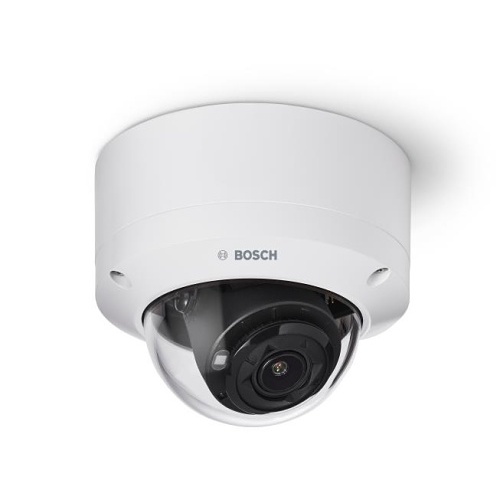

This surveillance camera is engineered for adaptability and professional-grade outdoor monitoring. It supplies outstanding image quality, enhanced starlight performance, and High Dynamic Range (HDR) at HD 1080p resolution, ensuring highly detailed imagery for advanced security and surveillance infrastructure needs. The inclusion of Intelligent Video Analytics Pro (IVA Pro) enhances situational awareness and generates timely alerts.

Equipped with a 1/2.8” sensor and HDR technology at HD 1080p resolution, the camera features a built-in active infrared illuminator, delivering superior performance in extremely low-light conditions. Its modular design utilizes a click-and-rotate mechanism for quick installation without additional hardware, offering compatibility with a variety of mounting solutions.

Supported by H.265 high-efficiency video encoding, this camera operates on an advanced H.264 and H.265/HEVC encoding platform, providing high-quality video with minimal network impact. H.265 has emerged as the preferred compression standard for IP video surveillance systems due to its superior encoding efficiency.

Pre-installed with Intelligent Video Analytics Pro (IVA Pro), the camera involves IVA Pro Buildings for robust deep-learning-based detection and tracking of individuals and vehicles across diverse scenarios, from sterile zones to congested areas. It effectively minimizes false triggers from harsh environmental conditions like rain, wind, snow, hail, and reflections, as well as shadows and insects, ensuring reliable detection and classification. It offers smart alert settings and efficient forensic search capabilities. Configuration is straightforward, eliminating the need for calibration. Optional licensing with IVA Pro Perimeter or IVA Pro Traffic can tailor analytics for specific enterprise applications.

Featuring two-way audio and a built-in microphone, the camera enables operators to engage with visitors or intruders via an external audio input/output. The integrated microphone captures clear audio to generate alerts, enhancing response times and proactive security measures. If required, microphone usage can be restricted with a secure license key, complying with local regulations.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE5702AL
Product LineFlexiDome
Product NameNDE-5702-AL Fixed dome 2MP HDR 3.2-10.5mm IR IO IP66
Product Series5100i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.4-10.2 mm
Lens IncludedYes
Maximum Focal Length10.50 mm

Miscellaneous
FeaturesDay/Night, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesPB-NDE4512AL
Model Number ReplacesNDE-4512-AL

Physical Characteristics
ColorWhite
Color FamilyDual Color
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.8"
Product ColorBlack, White
Weight (Approximate)2.49 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.8"
Mount TypeCeiling Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view 105º - 31º Vertical field of view 57º - 18º
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60 fps
Minimum Focal Length3.20 mm
Optical Zoom3.2x
