Description

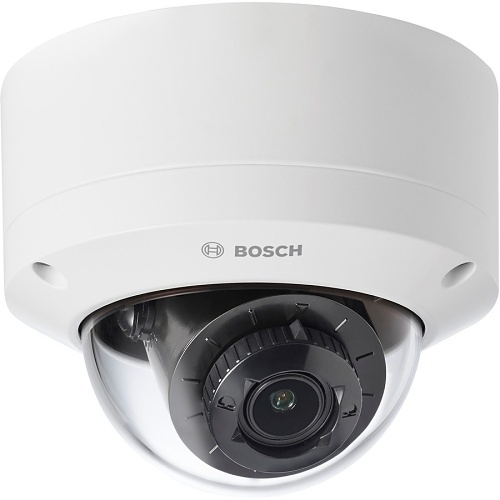

The advanced surveillance camera is designed for professional outdoor security monitoring, delivering top-tier image quality, starlight performance, and High Dynamic Range (HDR) at a 5 MP resolution. This ensures highly detailed imaging for rigorous security and surveillance network demands.

Incorporating Intelligent Video Analytics Pro (IVA Pro), the camera enhances situational awareness and generates precise alerts. Its 1/2.7” sensor combined with HDR technology at a 5 MP resolution ensures high performance in extremely low-light conditions. The modular design allows for quick installation with a click-and-rotate mechanism, facilitating compatibility with diverse mounting solutions without additional hardware.

**Key Features:**

– **H.265 High-Efficiency Video Encoding:** Operating on the robust H.264 and H.265/HEVC encoding platform, this camera delivers superior quality and high-resolution video with minimal network strain. The H.265 codec, recognized as the leading compression standard, doubles encoding efficiency, optimizing IP video surveillance systems.

– **Intelligent Video Analytics Pro (IVA Pro):** Equipped with IVA Pro Buildings, the camera offers reliable deep-learning-based detection and tracking of people and vehicles in various scenes, from sterile zones to crowded areas. It effectively handles challenges posed by environmental conditions such as rain, wind, snow, hail, water reflections, shadows, and bugs—ensuring accurate object detection, tracking, and classification. Customizable alarm and counter rules enable prompt alerts and efficient forensic searches through video recordings. Simplified configuration eliminates calibration requirements.

– **Optional Analytics Enhancement:** The camera can be updated with IVA Pro Perimeter or IVA Pro Traffic licenses to tailor analytics for specific enterprise applications.

– **Two-way Audio:** This feature allows operators to communicate with visitors or intruders via external audio input and output. Integrating an external microphone enables audio-triggered alarms, facilitating swift and proactive security responses.

– **DORI Coverage:** The camera adheres to the DORI (Detect, Observe, Recognize, Identify) standard (EN-62676-4), defining the viewer’s capability to distinguish individuals or objects within the monitored area, with maximum discernable distances indicated for specific camera/lens setups.

This high-performance camera is engineered to meet the sophisticated needs of modern IP video surveillance systems, delivering reliable security solutions with reduced network impact and enhanced analytical capabilities.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity100%

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE5703A
Product LineFlexiDome
Product NameFixed Dome 5MP HDR 3.4-10.2mm IP66
Product Series5100i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.4-10.2 mm
Lens IncludedYes
Maximum Focal Length10.50 mm

Miscellaneous
FeaturesDay/Night, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyDual Color
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.8"
Product ColorBlack, White
Weight (Approximate)2.49 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter5.8"
Mount TypeCeiling Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal field of view 96º - 29º Vertical field of view 71º - 22º
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.20 mm
Optical Zoom3.2x
