Description

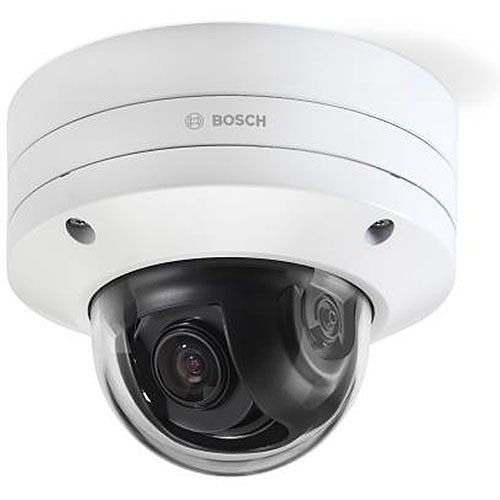

The FLEXIDOME IP starlight 8000i – 8MP performance line camera stands out in the video surveillance industry due to its impressive 1/1.8″ sensor, advanced starlight performance, and High Dynamic Range capability at 4K Ultra HD resolution, delivering highly detailed imagery even in tough lighting conditions. This security camera features remote commissioning capabilities, ensuring quick and easy installation. By leveraging the Bosch Project Assistant app on a PC or mobile device, users can execute pan, tilt, roll, and zoom (PTRZ) operations to achieve the desired field of view, all with just one click and without physical contact with the camera or lens.

**Key Functions**

**Effortless Remote Commissioning**
Setting up a professional IP security camera has been revolutionized with our streamlined process. The camera’s remote commissioning feature eliminates the traditional need for ladder work. With the Bosch Project Assistant app, camera orientation adjustments can be made swiftly. Additionally, remote configuration can be done post-installation using the network, the camera’s web interface, or the Bosch Configuration Manager, saving valuable time and effort for installers.

**High-Speed Performance**
With a high-resolution sensor and 30 frames per second frame rate, the camera expertly captures fast-moving objects with great detail while ensuring comprehensive situational awareness.

**Advanced Starlight Performance**
This cutting-edge technology combines superior sensor capabilities with sophisticated image processing, providing remarkable sensitivity in color, even in low-light conditions, ensuring vibrant and clear images when ambient lighting is minimal.

**Comprehensive High Dynamic Range**
Through a multi-exposure process, the High Dynamic Range mode captures intricate details in both highlights and shadows within the same scene. This results in clear visibility of objects and features, such as facial recognition, even in challenging backlit scenarios. The camera’s dynamic range is precisely measured using Opto-Electronic Conversion Function (OECF) analysis as per IEC 62676 Part 5 standards.

**Versatile Scene Modes**
Offering nine configurable modes tailored for diverse surveillance environments, the camera allows users to quickly select optimized image settings that match specific conditions. Whether for traffic monitoring or retail security, different scene modes enhance application effectiveness.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP6K9K
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity100%

Exposure
Longest Shutter Speed1/30 Second
Shortest Shutter Speed1/15000 Second

General Information
Brand NameBosch
ManufacturerThe Bosch Group
Manufacturer Part NumberNDE-8514-R
Product LineFLEXIDOME IP
Product ModelNDE-8514-R
Product NameFLEXIDOME IP 8000i Network Camera
Product Series8000i
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.9-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/2.7

Miscellaneous
Environmental CertificationEU RoHS, EU WEEE, REACH
Environmentally FriendlyYes
FeaturesAuto Tracking, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Region of Interest, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Package Contents1 x FLEXIDOME IP 8000i Network Camera1 x T-20 Security Torx Bit1 x Quick Installation Guide1 x Safety Information2 x Rubber Grommet for the Ethernet Cableand more below, 1 x 10-pin I/O Connector, 1 x 2-pin Power Connector, 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20), 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25), 1 x Cable Conduit for Side Entry, 1 x Network Patch Cable 50 cm, 1 x Washer for Cable Conduit, 3 x Identification Label

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesPB-NDE8504R
Model Number ReplacesNDE-8504-R

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth6.9"
DurabilityDust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Waterproof, Wind Resistant
Form FactorDome
Height5.8"
Product ColorWhite
Weight (Approximate)5.07 lb

Power Description
Input Voltage24V AC, 26V DC

Product Information
Mount TypeBox Mount, Ceiling Mount, In-ceiling, Parapet Mount, Pendant Mount, Pipe Mount, Pole Mount, Surface Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewWide: 117º x 62º (H x V); Tele: 44º x 24º (H x V)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.9 mm
Optical Zoom2.5x
