Description

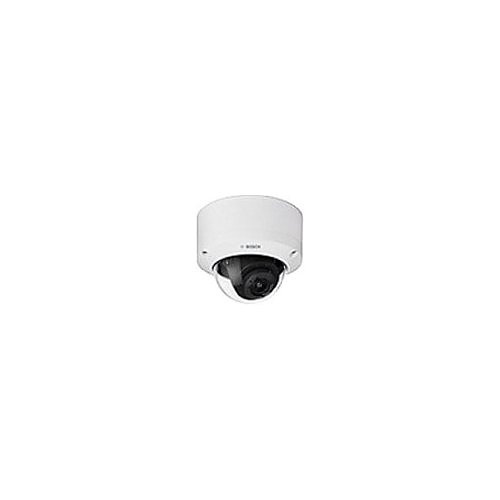

The Bosch NDV-5702-A is a 2 Megapixel high dynamic range (HDR) outdoor fixed dome surveillance camera, featuring a 3.4-10.2mm lens.
Bosch NDV-5702-A Megapixel HDR Outdoor Fixed Dome Camera with 3.4-10.2mm Lens
in stock
Special Order
$630.53
- 10.20 mm maximum focal length enhances identification distances and coverage in surveillance systems
- Varifocal lens ensures optimal performance and reliability in surveillance operations
- Wired connectivity guarantees consistent connections to surveillance cameras for enhanced productivity
- Wired connectivity offers exceptional visual reliability
- f/1.6 maximum aperture enhances light absorption for high-quality imaging in surveillance scenarios
- 3.3x optical zoom for improved subject proximity, boosting surveillance efficiency
- Full HD recording delivers vivid, high-quality video results with superior efficiency
- Infrared night vision effectively captures clear footage without external lighting
- Varifocal lens enhances surveillance productivity and flexibility
- PoE power source optimizes network camera performance and usability
| Camera | |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP54 |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Operating Humidity | 100% |
| General Information | |
| Brand Name | Bosch |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDV-5702-A |
| Product Line | FlexiDome |
| Product Model | NDV-5702-A |
| Product Name | Surveillance Camera |
| Product Series | 5100i |
| Product Type | Surveillance Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.2-10.5 mm |
| Lens Included | Yes |
| Maximum Focal Length | 10.20 mm |
| Miscellaneous | |
| Features | Audio Compression, Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Electronic Image Stabilization, Human Detection, Privacy Masking, SD Card Local Storage, Smart Object Detection, White Balance |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Durability | Dust Resistant, Impact Resistant, Rain Resistant, Splash Resistant, Tamper Resistant, Vandal Resistant |
| Form Factor | Dome |
| Height | 4.8" |
| Weight (Approximate) | 2.03 lb |
| Power Description | |
| Input Voltage | 48V DC |
| Product Information | |
| Diameter | 5.8" |
| Mount Type | Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Surface Mount, Wall Mount |
| Storage | |
| Recording Formats | Full HD |
| Storage Type | Memory Card/Cloud |
| Technical Information | |
| Connectivity Technology | Wired & Wireless |
| Effective Camera Resolution | 2MP |
| Field of View | Horizontal field of view 105º - 31º Vertical field of view 57º - 18º |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 60 fps |
| Minimum Focal Length | 3.4 mm |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Optical Zoom | 3.3x |
