Description

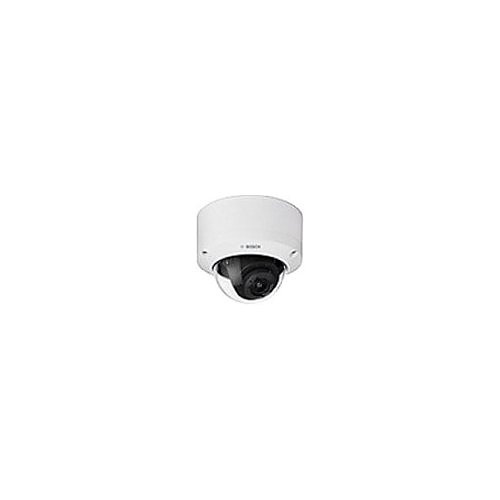

The Bosch NDV-5703-A is a 5 Megapixel HDR Outdoor Fixed Dome Surveillance Camera featuring a 3.4-10.2mm adjustable lens.
Bosch NDV-5703-A Megapixel HDR Outdoor Fixed Dome Camera with 3.4-10.2mm Lens
in stock
Special Order
$860.50
- 10.20 mm focal length delivers exceptional detail, enhancing the effectiveness of your surveillance system
- 3x optical zoom ensures crisp images and convenient capturing capabilities
- Varifocal lens for precise, detailed focus, optimizing surveillance performance
- Wired connectivity enhances visual reliability and consistency
- Wired technology ensures continuous connection to your surveillance network, maximizing operational efficiency
- 3.3x optical zoom to bring subjects closer, boosting surveillance effectiveness
- Infrared night vision utilizes minimal power while delivering high-quality nighttime surveillance footage
- Varifocal lens offers dependability and optimal surveillance performance
- PoE power source optimizes energy efficiency for your network camera, boosting surveillance productivity
- Ceiling mount blends aesthetic appeal with functional utility
| Camera | |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP54 |
| Display & Graphics | |
| Color Supported | Color |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Operating Humidity | 100% |
| General Information | |
| Brand Name | Bosch |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDV-5703-A |
| Product Line | FlexiDome |
| Product Model | NDV-5703-A |
| Product Name | Fixed dome 5MP HDR 3.4-10.2mm |
| Product Series | 5100i |
| Product Type | Surveillance Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.2-10.5 mm |
| Lens Included | Yes |
| Maximum Focal Length | 10.20 mm |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Audio Detection, Automatic White Balance, Back Light Compensation (BLC), Human Detection, Privacy Masking, SD Card Local Storage, Vehicle Detection, White Balance, Wide Dynamic Range |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Durability | Dust Resistant, Impact Resistant, Rain Resistant, Splash Resistant, Tamper Resistant, Vandal Resistant |
| Form Factor | Dome |
| Height | 4.8" |
| Weight (Approximate) | 2.03 lb |
| Power Description | |
| Input Voltage | 48V DC |
| Product Information | |
| Diameter | 5.8" |
| Mount Type | Ceiling Mount, Gang Box Mount, Junction Box Mount, Pole Mount, Surface Mount |
| Storage | |
| Storage Type | Memory Card/Cloud |
| Technical Information | |
| Connectivity Technology | Wired & Wireless |
| Effective Camera Resolution | 5MP |
| Field of View | Horizontal field of view 96º - 29º Vertical field of view 71º - 22º |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 3.4 mm |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Optical Zoom | 3x |
