Description

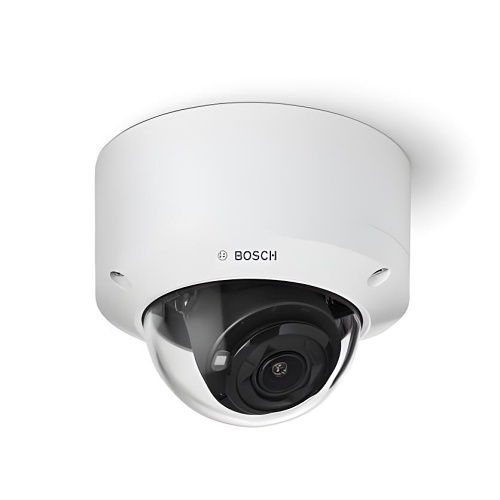

The surveillance camera is a versatile and professional-grade device designed for indoor security applications. It boasts exceptional image quality, impressive starlight performance, and High Dynamic Range (HDR) capabilities at a 5 MP resolution, providing highly detailed images to meet the stringent demands of modern security and surveillance networks. Equipped with advanced Intelligent Video Analytics Pro (IVA Pro), the system enhances situational awareness and triggers pertinent alerts. Featuring a 1/2.7’’ sensor combined with HDR technology, the camera excels at 5 MP resolution and includes a built-in active infrared illuminator for outstanding performance in extreme low-light conditions. Its modular design employs a click-and-rotate mechanism on the mounting plate or base, enabling fast installation without the need for additional hardware, and it is compatible with a variety of mounting options.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP54
TAA CompliantYes

Environmental Conditions
Maximum Operating Temperature122°F
Minimum Operating Temperature-4°F

General Information
Brand NameBosch
ManufacturerBosch
Manufacturer Part NumberNDV-5703-AL-GOV
Product ModelNDV-5703MP-AL
Product NameNDV-5703 mP-AL-GOV Fixed dome5 mPMP HDR3 mP.2 mP-10 mP.5 mPmm IR I/O GOV
Product TypeCamera

Lens
Focal Length3.2-10.5 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorIndoor
Package Contents1 8 -pin terminal block, 1 Adapter plate for cable conduit (Ø1 /2 " / M20 ), 1 Adapter plate for cable conduit (Ø3 /4 " / M25 ), 1 FLEXIDOME Indoor5100 i IR -2 camera, 1 Mount plate, 1 Quick Installation Guide, 1 RJ45 guider, 1 Safety information, 1 T-20 security Torx Allen key

Physical Characteristics
ColorBlack, White
DurabilityDust Resistant, Impact Resistant, Splash Resistant
Form FactorDome
Height4"-8"
Weight (Approximate)2-03 lb

Product Information
Diameter5"-83"
Mount TypeSurface Mount

Technical Information
Effective Camera Resolution5MP
Field of ViewH:96°-29°, V:71°-22°
Lens TypeVarifocal
Maximum Frame Rate60fps
Minimum Focal Length3-2 mm
