$380.87

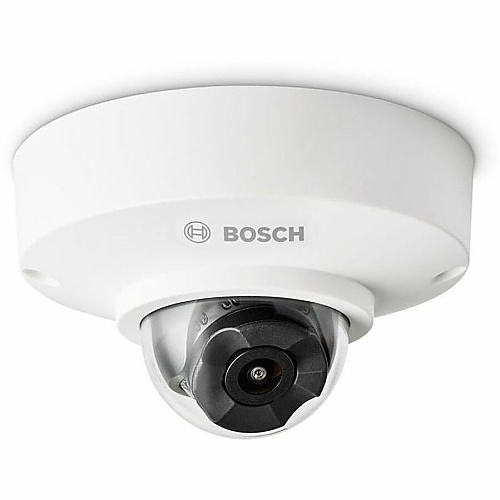

The FLEXIDOME micro 3100i is designed to be discreet and compact, delivering high-quality imaging for continuous surveillance. It features IVA Pro Buildings deep-learning-based video analytics for dependable detection in and around structures, coupled with an integrated Secure Element for enhanced data security. This surveillance solution offers unique corner and plenum-rated ceiling mounts for inconspicuous installation and is also compatible with Bosch’s modular mounting options.
| Display & Graphics | |
| Color Supported | Color, Monochrome |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Operating Humidity | 93% |
| General Information | |
| Brand Name | Bosch |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NUV3703F06 |
| Product Line | FLEXIDOME Micro |
| Product Model | NUV-3703-F06 |
| Product Name | FLEXIDOME micro 3100i NUV-3703-F06 Network Camera |
| Product Series | 3100i |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 6 mm |
| Lens Included | Yes |
| Maximum Focal Length | 6 mm |
| Miscellaneous | |
| Environmental Certification | EU RoHS, EU WEEE |
| Environmentally Friendly | Yes |
| Features | Alarm Triggering, Back Light Compensation (BLC), Day/Night, Human Detection, Privacy Masking, Tamper Detection, Vehicle Detection, Video Content Analytics, White Balance |
| Impact Protection Rating | IK08 |
| Indoor/Outdoor | Indoor |
| Package Contents | 1 FLEXIDOME micro 3100i device 1 TR15 key 1 Mounting sticker 1 Quick installation guide 1 Safety and security information 3 Installer UX label |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Color Family | White |
| Durability | Impact Resistant |
| Form Factor | Micro Dome |
| Height | 2.6" |
| Product Color | White |
| Weight (Approximate) | 8.11 oz |
| Product Information | |
| Diameter | 4.3" |
| Mount Type | Surface Mount |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Field of View | Horizontal: 56.1°, Vertical: 39.2° |
| HD Recording | Yes |
| Lens Type | Fixed |
| Maximum Aperture | f/1.9 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 6 mm |
