Description

Leveraging advanced deep learning technology, Hikvision AcuSense offers precise human or vehicle target classification for alarms across both front-end and back-end security devices. This sophisticated system significantly minimizes false alarms triggered by non-human or non-vehicle movements, enhancing the overall efficiency and effectiveness of surveillance alarms.

Key Features:
– Outstanding low-light performance with Powered-by-DarkFighter technology.
– Captures high-quality images with 5 MP resolution.
– Lens Specifications & Field of View (FOV): 2.8 mm with 78° horizontal FOV, 58° vertical FOV, and 102° diagonal FOV.
– Utilizes efficient H.265+ compression technology.
– Reduces false alarms through deep learning-based human and vehicle target classification.
– Infrared (IR) range extending up to 131 feet (40 meters).
– Designed for durability with water and dust resistance (IP67) and vandal resistance (IK10).

Camera
Night Vision Distance131 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP67
TAA CompliantNo

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/3 Second
Shortest Shutter Speed1/100000 Second

General Information
Brand NameHikvision
ManufacturerHikvision
Manufacturer Part NumberPCI-D15F4S
Product LineAcuSense
Product ModelPCI-D15F4S

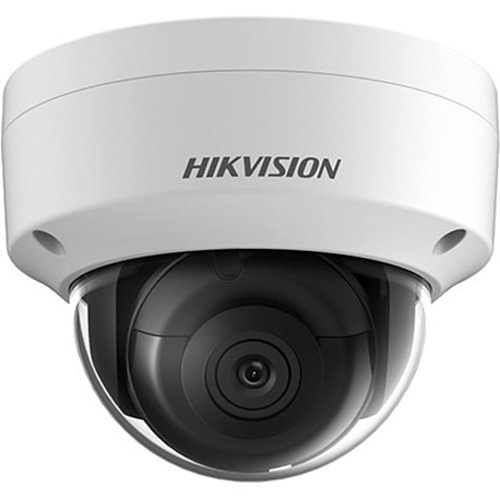

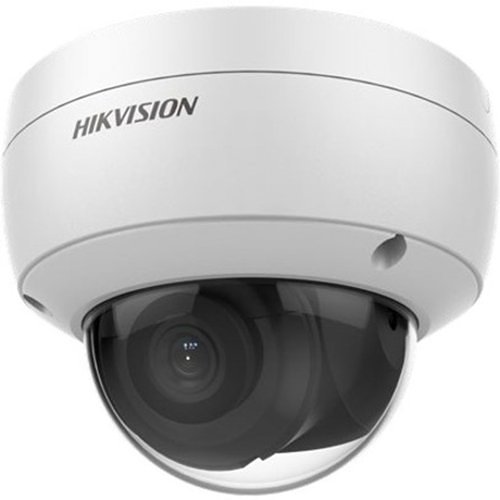

Product NameAcuSense 5 MP IR Fixed Dome Network Camera
Product SeriesPerformance
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4 mm

Miscellaneous
Environmental CertificationREACH, RoHS, WEEE
Environmentally FriendlyYes
Features3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Built-in HLC, Cross Line Detection, Day/Night, Defog, Electronic Image Stabilization, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Tampering Alarm
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesHX-OD2145F4S
Model Number ReplacesDS-2CD2145FWD-IS 4MM

Physical Characteristics
ColorWhite
DurabilityDust Resistant, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Weight (Approximate)1.30 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.8"
Mount TypeCeiling Mount, Corner Mount, Junction Box Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of Viewhorizontal FOV 78°, vertical FOV 58°, diagonal FOV 102°
HD RecordingYes
Lens Mount TypeM12 Mount
Lens TypeFixed
Maximum Aperturef/1.4
Maximum Frame Rate30 fps
Minimum Focal Length4 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty36 Month
