Description

### Server-less Video Surveillance Solution with Built-in Rugged SSD

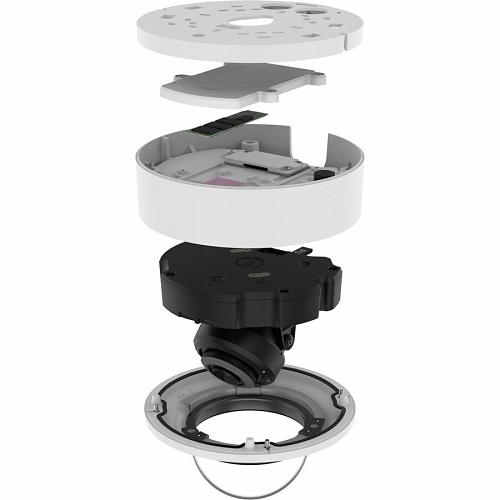

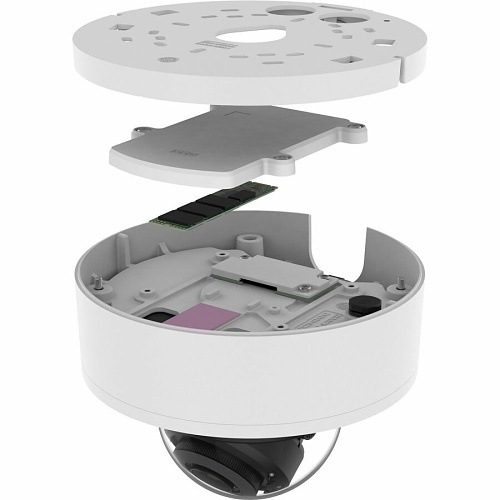

Traditional video surveillance infrastructures often rely on external servers for camera management and recording. Our innovative solution is a server-less system featuring an integrated rugged SSD, enabling localized storage of video data and eliminating the dependency on external recording servers for streamlined operations.

### Expandable Camera Support for Comprehensive Monitoring

Our solution allows for the integration of up to five additional cameras alongside the built-in SolidEDGE camera, capable of supporting and monitoring up to six video channels. This scalability makes it an ideal choice for small to medium-sized businesses (SMBs), such as coffee shops, restaurants, and bakeries, seeking efficient surveillance capabilities.

### Integrated VMS Licensing

Each SolidEDGE camera comes with a 1-channel Wisenet WAVE license, requiring users to acquire only a Video Management System (VMS) license for each extra camera, simplifying the expansion process and enhancing cost-effectiveness.

### Flexible and Scalable System Architecture

Our server-less solution offers flexibility and scalability for multi-site monitoring through the Wisenet WAVE Sync feature. This functionality provides users with remote access and management of security systems globally, while also ensuring the systems stay current with regular software and security updates.

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity0-95% RH(Non-condensing)

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.0032 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
Cloud StorageYes
Edge EnabledYes
ManufacturerHanwha Vision
Manufacturer Part NumberPNV-A6081R-E1T
Product LineSolidEDGE
Product ModelPNV-A6081R-E1T

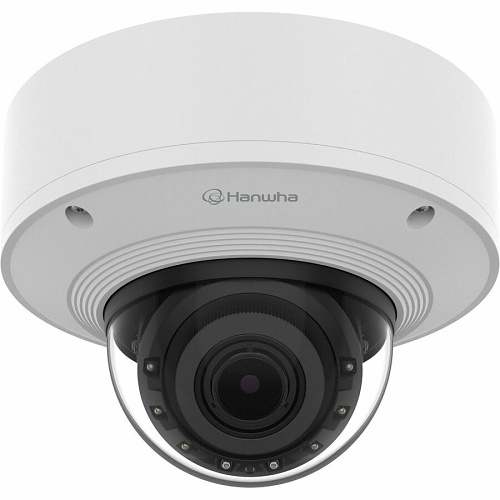

Product Name2MP AI IR Outdoor Vandal Dome Camera with 1TB/2TB SolidEDGE WAVE Recording Solution
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.38-9.33 mm
Lens IncludedYes
Maximum Focal Length9.33 mm
Minimum Aperturef/2.15

Miscellaneous
Environmental CertificationUL
Features2MP resolution up to 120fps, A complete server-less VMS solution, Capable of recording up to 5 additional cameras for a total recording solution, up to 6 total cameras (32Mbps total recording throughput), Cloud-managed and accessible using WAVE Sync, Includes 1-channel WAVE Professional camera license, License-Free Video Analytics based on AI, NDAA, FCC and UL compliant, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, PNV-A6081R-E1T (1TB) and PNV-A6081R-E2T (2TB) embedded Solid State Drive (SSD) with WAVE VMS pre-loaded
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)4.19 lb

Power Description
Input Voltage12V DC

Product Information
Diameter7.09"
Mount TypePendant Mount

Storage
Recording FormatsFull HD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 104°-44°, V: 55°-24°, D: 124°-51°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.3
Maximum Frame Rate120 fps
Minimum Focal Length4.38 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom2.1x

Video
Analog Video Signal FormatCVBS
