Description

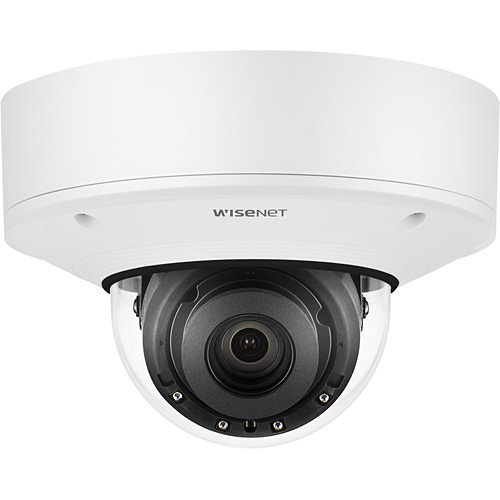

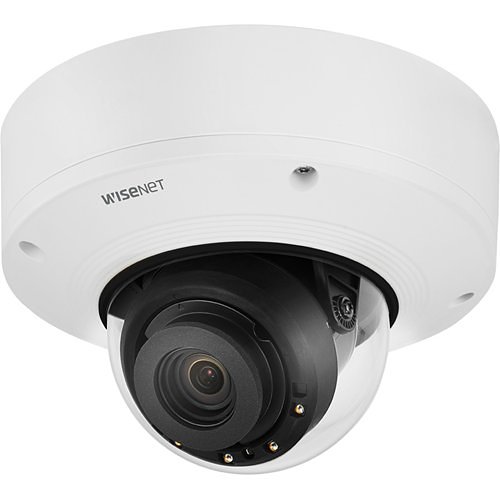

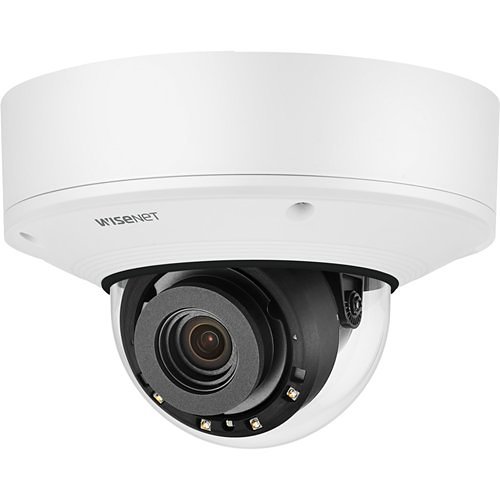

Enhance the security of your indoor or outdoor environments with the Hanwha Techwin PNV-A9081R surveillance camera. Equipped with a 1/1.8″ CMOS sensor, this camera captures ultra-high-definition video in 3840 x 2160 resolution at a smooth 30 frames per second. It features IR LEDs that offer night vision capabilities up to 98 feet, ensuring clear visibility even in low-light conditions. The camera’s 4.5-10mm motorized varifocal lens provides a flexible horizontal field of view ranging from 101.4 to 45.5 degrees, along with a 2.2x optical zoom for precise monitoring. Two-way audio is facilitated through dedicated audio input and output options. For expansive storage, dual memory card slots accommodate microSD/SDHC/SDXC cards with a combined capacity of up to 512GB. Streamlined installation is achieved through integrated PoE (Power over Ethernet) technology, allowing for power and data transmission over a single cable.

This robust dome camera is NDAA-compliant and compatible with ONVIF profiles G, S, and T, offering seamless integration with diverse surveillance systems. Constructed with an IP69-, NEMA 4X-, and IK10-rated aluminum enclosure, it is built to withstand harsh outdoor conditions and potential vandalism, making it an ideal choice for high-risk locations.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.005 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberPNV-A9081R
Product ModelPNV-A9081R
Product Name4K AI IR Vandal Dome
Product SeriesP
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.5-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/2.65

Miscellaneous
Features0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)4.19 lb

Power Description
Input Voltage12V DC

Product Information
Diameter7.09"
Mount TypeCeiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH: 101.4°-45.5°, V: 53.6°-25.5°, D: 120.7°-52.3°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length4.5 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom2.2x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
