Description

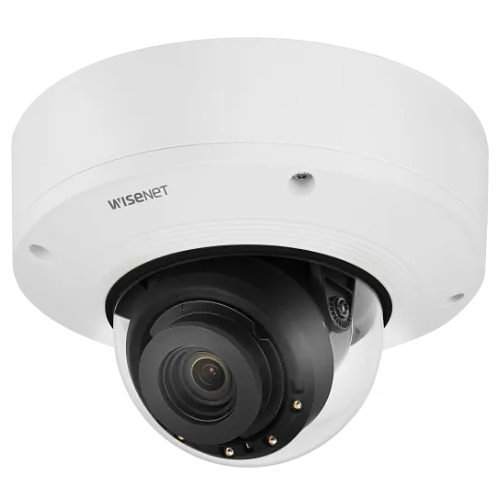

Enhance the surveillance of any indoor or outdoor environment with the Hanwha Techwin PNV-A9081R 4K UHD Network Dome Camera. This advanced security camera is equipped with a 1/1.8″ CMOS sensor, capturing high-definition video at 3840 x 2160 resolution at 30fps. Its IR LEDs offer up to 98 feet of night vision, ensuring reliable monitoring in low-light conditions. The 4.5-10mm motorized varifocal lens offers a horizontal field of view ranging from 101.4 to 45.5° and provides 2.2x optical zoom for enhanced detail. The camera supports two-way audio with an audio input and output feature. It also includes dual memory card slots, accommodating microSD/SDHC/SDXC cards for up to 512GB of storage (cards sold separately). Integrated PoE (Power over Ethernet) technology streamlines installation by allowing power and data transmission through a single cable.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3840 x 2160

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.005 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberPNV-A9081R/KAP
Product ModelPNV-A9081R/KAP
Product Name4K AI IR Vandal Dome
Product SeriesP
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.5-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/2.65

Miscellaneous
Features0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)4.19 lb

Power Description
Input Voltage12V DC

Product Information
Diameter7.09"
Mount TypeCeiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH: 101.4°-45.5°, V: 53.6°-25.5°, D: 120.7°-52.3°
HD RecordingYes
Lens TypeVarifocal
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length4.5 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom2.2x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
