Description

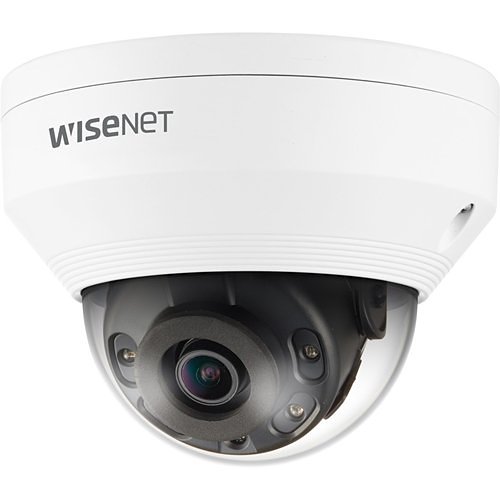

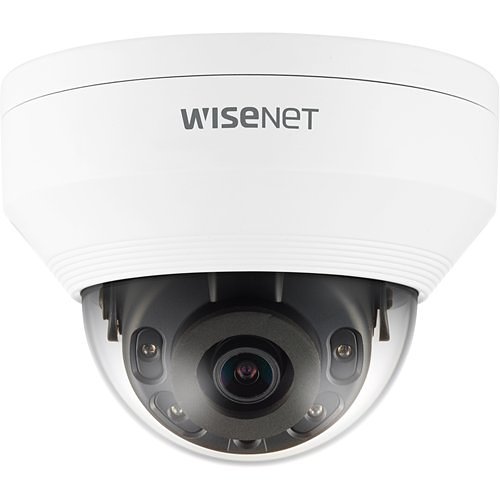

The QNV-8010R from Hanwha’s Q Series is a cost-effective network surveillance solution. This 5 Megapixel Outdoor Vandal-Resistant Dome network camera incorporates WiseStream II compression technology and supports triple codec formats, including H.265, H.264, and MJPEG. It is equipped with a 2.8mm lens, IR capability, and boasts IP66 and IK10 ratings for robust weather and impact resistance. Additionally, it features Power over Ethernet (PoE), 120dB True Wide Dynamic Range (WDR), Intelligent Video Analytics, Hallway View, and has an SD card slot supporting SD/SDHC/SDXC storage up to 128GB.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberQNV-8010R
Product ModelQNV-8010R
Product Name5MP Network IR Dome Camera
Product SeriesQ
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8 mm
Lens IncludedYes
Maximum Focal Length2.8 mm

Miscellaneous
FeaturesBack Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-QNV7010R
Model Number ReplacesQNV-7010R

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height3.6"
Product ColorWhite
Weight (Approximate)1.12 lb

Product Information
Diameter4.7"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH : 104.7°/ V : 76.5°/ D : 136.0°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Years
