Description

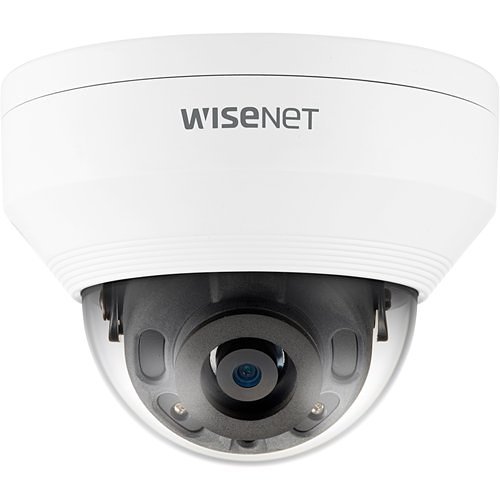

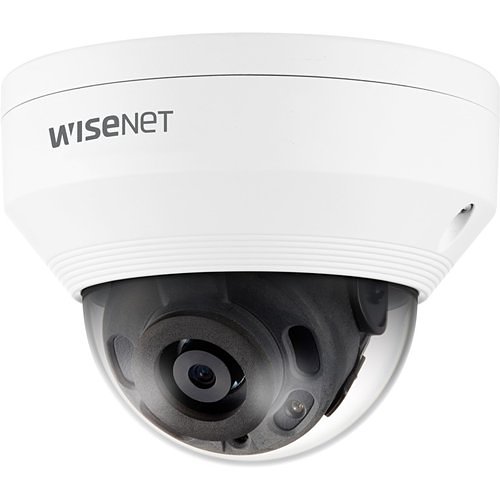

The Hanwha Techwin QNV-8020R Network Camera series is designed for outdoor surveillance, offering a robust 5 MP Vandal Resistant Dome configuration. It integrates WiseStream II, Hanwha’s advanced compression technology, enhancing bandwidth efficiency. Equipped with a 1/2.8-inch 5 MP CMOS sensor, this camera can capture video at a resolution of 2592 x 1944 pixels, providing an expansive field of view ideal for monitoring large outdoor spaces. It supports MJPEG, H.264, and H.265 compression technologies, which effectively reduce data size and extend recording capacities, thereby easing network load management.

Camera
Night Vision Distance82.02 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberQNV-8020R
Product ModelQNV-8020R
Product Name5 MP Network IR Vandal Resistant Dome Camera with 4mm Lens
Product SeriesQ
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Lens IncludedYes
Maximum Focal Length4.0 mm

Miscellaneous
Features,, 30fps at all resolutions (H.265/H.264), 5 MP resolution, Analog video out for easy installation, Built-in 4mm fixed lens, Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, H.265, H.264, MJPEG codec supported, multiple streaming, Hallway view support, IR viewable length 25m,, Micro SD (128GB) memory slot, PoE
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-QNV7020R, SQ-QNV8030R
Model Number ReplacesQNV-7020R, QNV-8030R

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height3.6"
Product ColorWhite
Weight (Approximate)1.12 lb

Product Information
Diameter4.74"
Mount TypeCeiling Mount, Wall Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 79.8°, V: 58.1°, D: 105.9°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length4 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
