Description

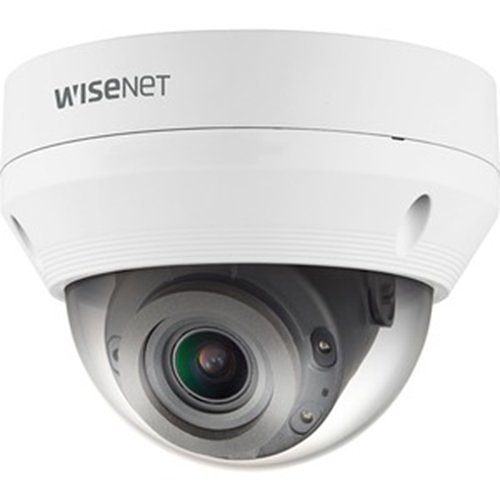

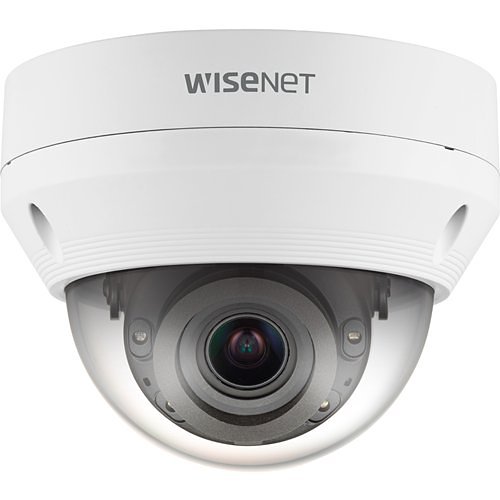

The QNV-8080R, part of Hanwha’s Q Series of cost-effective IP surveillance solutions, is a 5 Megapixel Outdoor Vandal Resistant Dome security camera. It incorporates WiseStream II, Hanwha’s advanced compression technology, and supports triple codec formats: H.265, H.264, and MJPEG. Equipped with a 3.2~10mm motorized varifocal lens, infrared capability, and rugged durability with IP66 and IK10 ratings, this camera offers robust outdoor performance. It features Power over Ethernet (PoE), 120dB True Wide Dynamic Range (WDR), Intelligent Video Analytics, and a Hallway View mode. Additionally, it includes an SD card slot compatible with SD, SDHC, or SDXC cards up to 128GB, and the simple focus function allows for quick focus adjustments at the push of a button.

Camera
Night Vision Distance98.43'
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberQNV-8080R
Product ModelQNV-8080R
Product Name5M H.265 NW IR Dome Camera
Product SeriesQ
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.2-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/2.9

Miscellaneous
FeaturesBack Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, SD Card Local Storage
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.2"
Product ColorWhite
Weight (Approximate)1.54 lb
Width5.39"

Product Information
Diameter5.4"
Mount TypeCeiling Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewHorizontal: 100.3°-31.2° Vertical: 72.3°-23.5° Diagonal: 133.1°-38.8°
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.2 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.1x

Warranty
Limited Warranty3 Years
