Description

**Minimizing False Alarms in Surveillance Systems**

The advanced Q series AI surveillance cameras are designed to detect and classify people and vehicles in real-time, significantly enhancing video analytic precision. By using cutting-edge artificial intelligence, these cameras can distinguish individuals as distinct objects separate from environmental factors like swaying trees, moving shadows, or passing animals. This capability improves operator efficiency even when using standard motion detection features.

**Diverse Resolution Options from 2MP to 8MP**

The Q series AI surveillance cameras are available in a range of resolutions from 2MP to 8MP, providing users the flexibility to select the ideal option for their specific environmental requirements.

Camera
Night Vision Distance65.62 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66

Display & Graphics
Color SupportedColor
Maximum Video Resolution2592 x 1944

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity0-95% RH

Exposure
Longest Shutter Speed1/5 Second
Minimum Illumination0.003 lux
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberQNV-C8011R
Product ModelQNV-C8011R

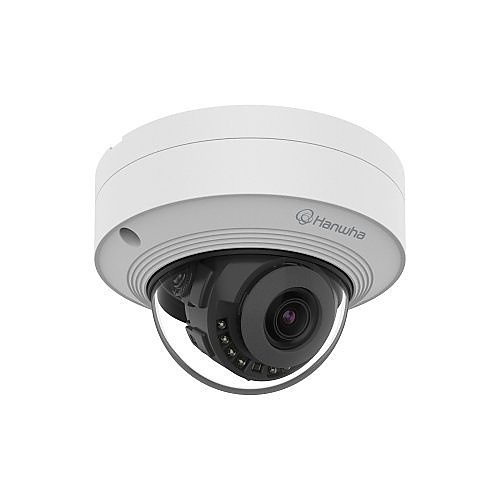

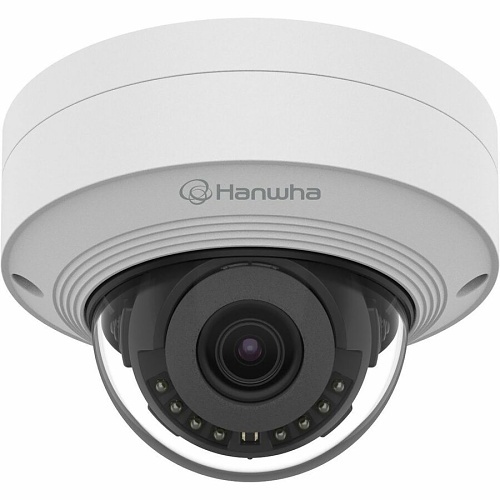

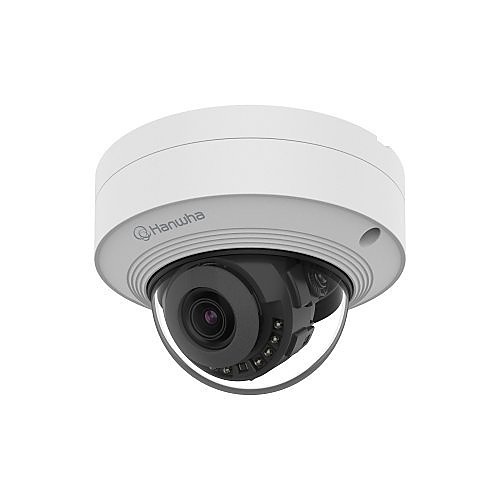

Product Name5MP AI IR Mini Vandal Dome
Product SeriesQ
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3 mm
Lens IncludedYes
Maximum Focal Length3.0 mm

Miscellaneous
Features,, 3.0mm fixed lens (H - 100°/V - 73°), 30fps at all resolutions (H.265/H.264), 5MP resolution, Day and Night (ICR), WDR (120dB), IR viewable length 20m (65ft), Micro SD (256GB) memory slot, PoE/12V DC, People Counting, Heatmap, Queue Management and Vehicle Counting, Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)1.15 lb

Product Information
Diameter4.33"
Mount TypeBackbox Mount, Conduit Mount, Gang Box Mount, Pendant Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 100°, V: 73°, D: 129°
HD RecordingYes
Lens Mount TypeM12-mount
Lens TypeFixed Focus
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
