Description

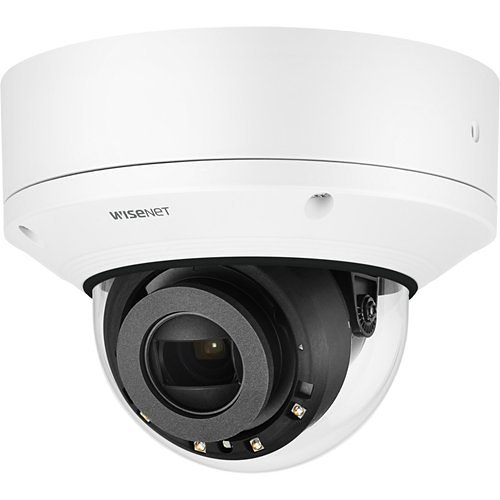

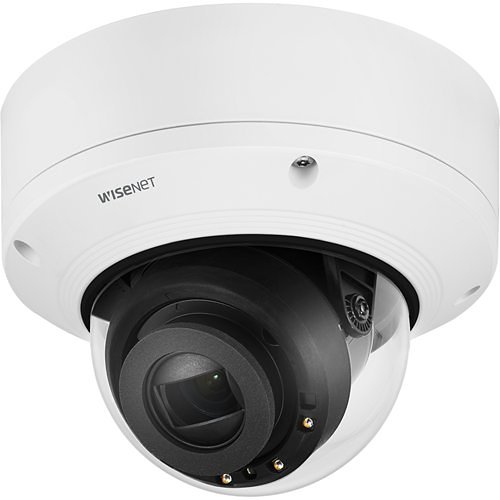

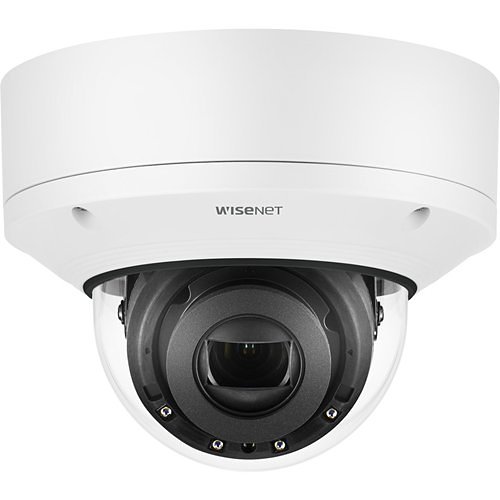

The Wisenet X series PLUS, powered by the advanced Wisenet 5 chipset, is an industry-leading network indoor vandal dome camera featuring a modular design for streamlined installation. This camera captures high-resolution images with its 2MP Full HD (1080p) sensor at 60fps and is equipped with a motorized 4.3x vari-focal lens (2.8~12mm) offering a field of view from 119.5° to 27.9°. Key features include a built-in PoE Extender for efficient connectivity, supporting PoE+ power input and PoE output up to 80 meters. With an IR range of 164 feet, this camera excels in low light and no light conditions, ensuring reliable monitoring. Utilizing triple codec technology (H.265/H.264/MJPEG) combined with WiseStream II, it efficiently reduces bandwidth and storage needs. Enhanced capabilities include 150dB wide dynamic range (WDR), a USB port for straightforward installation, sophisticated video and business analytics, sound classification, shock detection, and audio playback. Additional specifications include true day/night functionality, dual SD card support, hallway view, high light compensation (HLC), fog detection, digital image stabilization (DIS) with Gyro sensor, 12VDC/PoE power options, and robust protection ratings (IP52, IK10). The camera is available in a sleek white finish with an optional black cover, and its modular design allows for flexible installation, including a convenient cutout for hassle-free configuration without dismantling the unit.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP52
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-13°F (-25°C)
Operating Humidity90%

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXND-6081REV
Product ModelXND-6081REV
Product Name2MP Vandal-Resistant Indoor IR Network Dome Camera with PoE Extender
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Maximum Focal Length12 mm
Minimum Aperturef/3.6

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant
Form FactorDome
Product ColorSignal White
Weight (Approximate)3.20 lb

Product Information
Diameter6.3"
Mount TypeCorner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.4
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Optical Zoom4.3x
