Description

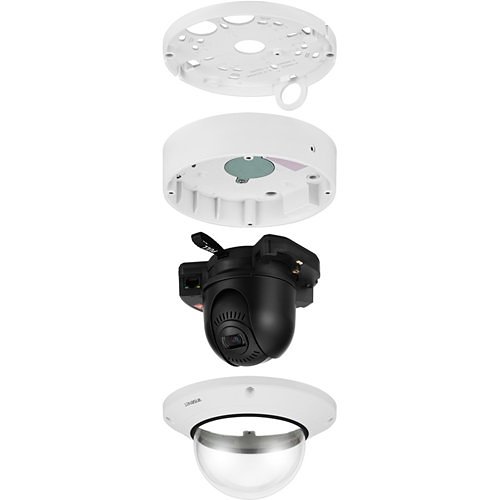

The Wisenet X Plus, driven by the Wisenet 5 chipset, is a top-tier network indoor vandal-resistant dome camera designed with a modular architecture. It boasts a 2MP resolution, delivering Full HD (1080p) video at 60fps, and features a motorized vari-focal lens with a 4.3x optical zoom (2.8~12mm) providing a field of view ranging from 119.5° to 27.9°. This camera is equipped with a 164-foot IR range, ideal for low-light or no-light surveillance. Utilizing the triple codec H.265/H.264/MJPEG and WiseStream II technology, it effectively minimizes bandwidth and storage needs. Key features include 150dB Wide Dynamic Range (WDR), a USB port for straightforward setup, sophisticated video and business analytics, sound categorization, shock detection, audio playback, true day/night functionality, dual SD card support, unique hallway view, high light compensation, defog detection, digital image stabilization (gyro), 12VDC/Power over Ethernet (PoE), IP52 and IK10 ratings, and it comes in white with an ivory skin, with an optional black skin cover available. Its modular design facilitates easy installation by allowing the camera case and module to be mounted separately. Furthermore, the camera module box is engineered with a cutout for hassle-free configuration without needing to disassemble the device.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP52
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-13°F (-25°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXND-6081RV
Product ModelXND-6081RV
Product Name2MP Vandal-Resistant Indoor IR Network Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm
Minimum Aperturef/1.4

Miscellaneous
FeaturesBack Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor
Package Contents 2MP Vandal-Resistant Indoor IR Network Dome Camera Ivory Skin

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant, Shock Resistant
Form FactorDome
Height4.9"
Product ColorWhite
Weight (Approximate)3.20 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.3"
Mount TypePendant Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH : 119.5°(Wide)~27.9°(Tele) V : 62.8°(Wide)~15.7°(Tele) D : 142.1°(Wide)~32.0°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/3.6
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom4.3x

Warranty
Limited Warranty3 Year
