Description

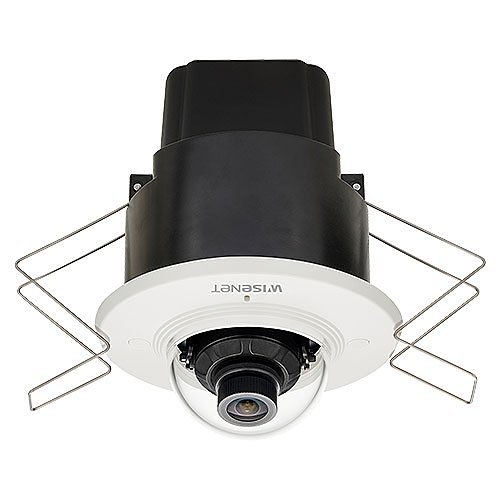

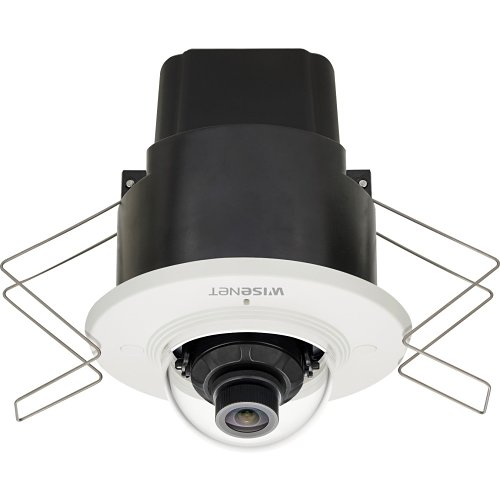

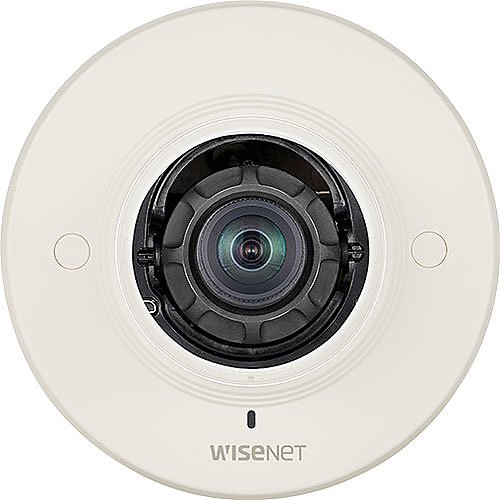

The Wisenet X, equipped with the advanced Wisenet 5 chipset, is a network flush mount dome camera offering 5MP resolution at 30fps. It features a 3.7mm fixed lens with a 97.5° field of view and supports triple codec technology (H.265/H.264/MJPEG) with WiseStream II for efficient video compression. The camera boasts a 120dB Wide Dynamic Range (WDR), USB port for straightforward setup, and cutting-edge video analytics, including sound classification and business insights. It includes a built-in microphone, magnetic cover, electronic day/night mode, and supports SD card storage. Additional features include hallway view, high light compensation (HLC), defog detection, digital image stabilization (DIS), and power over Ethernet (PoE) connectivity.

Camera
Wide Dynamic RangeYes

Certifications
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution2560 x 1920

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature14°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.16 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXND-8020F
Product ModelXND-8020F
Product Name5MP Indoor Flush Mount Compact Dome Camera
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.7 mm
Lens IncludedYes
Maximum Focal Length3.7 mm

Miscellaneous
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Highlight Compensation (HLC), Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
Color FamilyDual Color
Form FactorDome
Height5.1"
Product ColorBlack, Ivory
Weight (Approximate)0.6 lb

Power Description
Input Voltage12V DC

Product Information
Diameter3.9"
Mount TypeFlush Mount

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 97.5°, V: 71.9°, D: 126.2°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeFixed
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.7 mm

Warranty
Limited Warranty3 Year
