Description

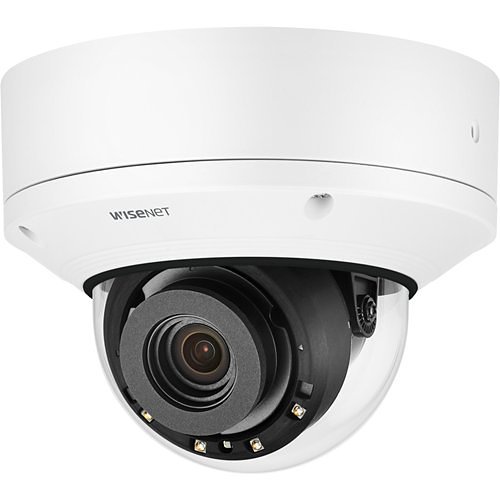

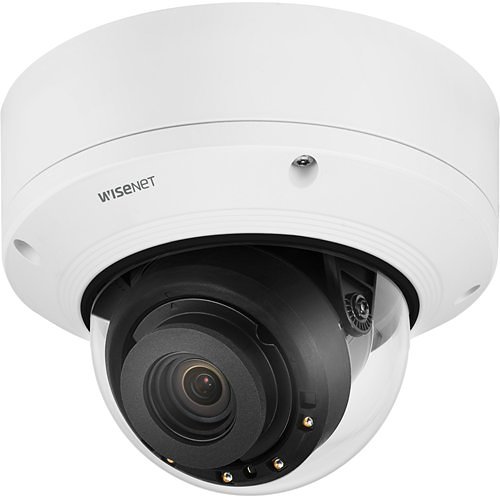

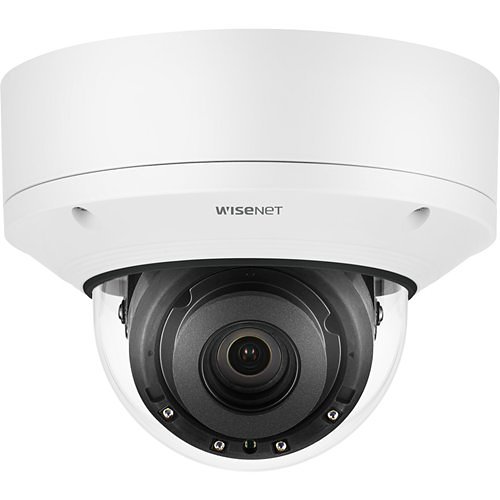

The Wisenet X series PLUS, powered by the Wisenet 5 chipset, is a versatile network indoor vandal dome camera designed for advanced surveillance needs. With its innovative modular structure, this camera boasts a 5MP resolution supporting Full HD (1080p) at 60fps and is equipped with a motorized vari-focal lens offering 4.3x zoom (2.8~12mm) with a field of view ranging from 92.1° to 38.7°. It features built-in Power over Ethernet (PoE) extender capabilities, allowing for PoE+ input and PoE output extending up to 80 meters. The camera provides a 164-foot infrared viewable range for effective monitoring in low-light or no-light conditions. It supports triple codec technology with H.265/H.264/MJPEG and incorporates WiseStream II to reduce bandwidth and storage demands. Key features include 120dB Wide Dynamic Range (WDR), a USB port for simplified installation, advanced video analytics, sound classification, business analytics, shock detection, audio playback, true day/night functionality, dual SD card slots, hallway view mode, high light compensation, fog detection, digital image stabilization (Gyro), PoE+, IP52 and IK10 protection ratings, and comes in a white finish with an optional black skin cover. The modular design facilitates hassle-free installation by allowing the separation of the camera case from the module. Additionally, the module box offers a cutout feature for convenient configuration without needing to disassemble the camera or case.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP52
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-13°F (-25°C)
Operating Humidity90%

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXND-8081REV
Product LineX-Series
Product ModelXND-8081REV
Product NameXND-8081REV 5MP Vandal-Resistant Indoor IR Network Dome Camera with PoE Extender
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Maximum Focal Length9.4 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant
Form FactorDome
Product ColorSignal White
Weight (Approximate)3.20 lb

Product Information
Diameter6.3"
Mount TypeCorner Mount, Pendant Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
HD RecordingYes
Lens TypeVarifocal
Minimum Focal Length3.9 mm
Optical Zoom2.4x
