Description

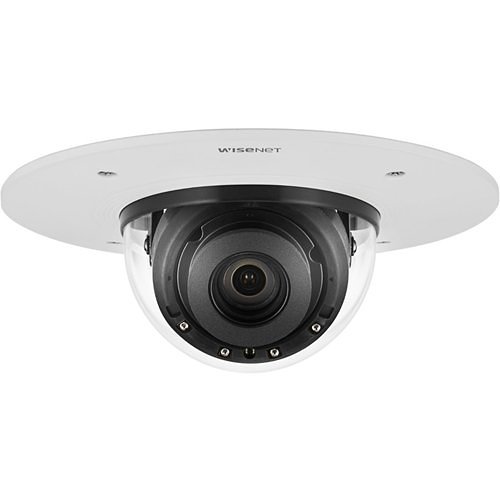

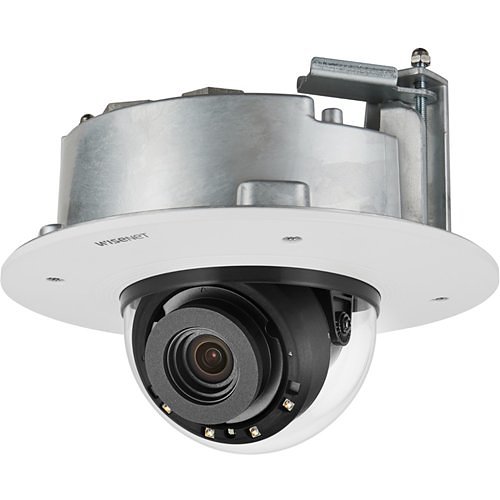

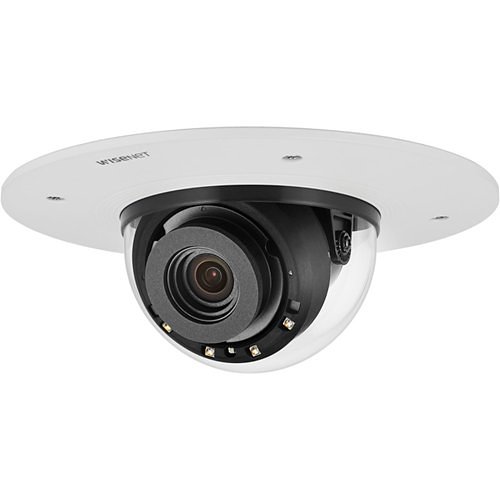

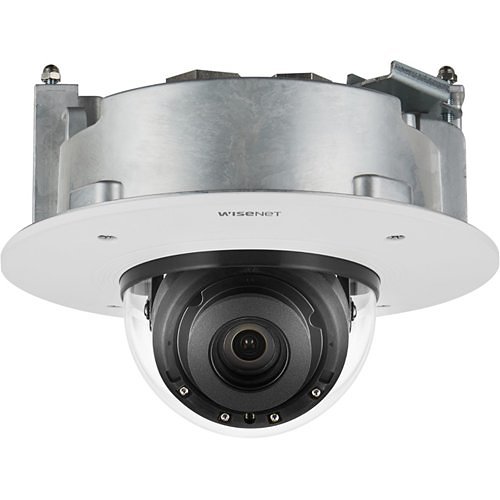

The Wisenet X series, enhanced by the Wisenet 7 network technology, introduces an indoor flush mount dome camera engineered with a modular design. This security camera boasts a 4K resolution at 30fps and a motorized 3x vari-focal lens (2.8~8.4mm) offering a 114°~40.2° field of view. Equipped with a 131-foot infrared viewing capability, it excels in low-light and no-light surveillance environments. Utilizing triple codec formats H.265, H.264, and MJPEG combined with WiseStream II technology, it significantly minimizes bandwidth and storage demands. Key features include extreme WDR, a USB port for straightforward installation, advanced video analytics, sound classification, and business intelligence analytics. It also offers shock detection, audio playback, true day/night functionality, dual SD card slots, hallway view, highlight compensation (HLC), defocus detection, fog detection, digital image stabilization (DIS) with gyro sensors, and power options of 12VDC or PoE. With an IP52 and plenum-rated construction in white, the system is designed for seamless camera case and module installation, simplifying the configuration process with an accessible module box cutout. The system also emphasizes advanced cybersecurity for robust protection.

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP52
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-13°F (-25°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXND-9082RF
Product ModelXND-9082RF
Product Name4K Network IR Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-8.4 mm
Lens IncludedYes
Maximum Focal Length8.40 mm

Miscellaneous
FeaturesAudio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking, Shock Detection
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDust Resistant, Impact Resistant
Form FactorDome
Product ColorSignal White
Weight (Approximate)4.29 lb

Power Description
Input Voltage12V DC

Product Information
Diameter8.1"
Mount TypeFlush Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D: 133.0°(Wide)~46.3°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Optical Zoom3x
Video Signal FormatNTSC, PAL

Video
Analog Video Signal FormatCVBS
