Description

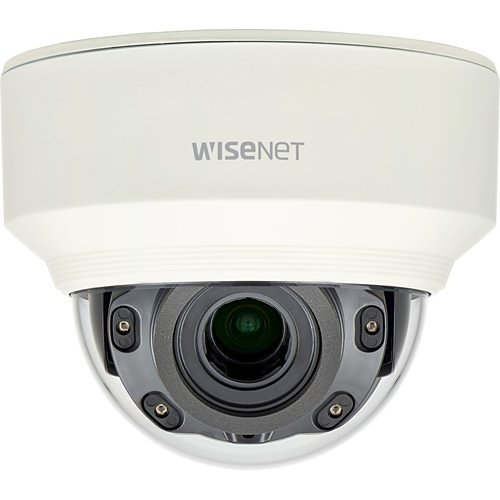

The Wisenet X network indoor vandal dome camera, featuring Wisenet 5 technology, offers exceptional performance with its 2MP Full HD (1080p) resolution at 60fps. It includes a motorized 3.1x vari-focal lens (3.2~10mm) providing a field of view from 109° to 33.2°. The camera supports triple codec technology with H.265, H.264, and MJPEG, utilizing WiseStream II for optimized streaming. It boasts 120dB wide dynamic range (WDR) and a USB port for simplified installation. Enhanced with high-powered IR LEDs for a range of up to 98.43′, it also includes true day/night functionality, a single SD card slot, hallway view, high light compensation (HLC), defog detection, digital image stabilization (DIS), Power over Ethernet (PoE), and is rated IK08 for impact resistance.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-14°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.03 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXND-L6080RV
Product ModelXND-L6080RV
Product Name2MP Indoor IR Vandal Dome
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.2-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/1.6

Miscellaneous
FeaturesBack Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection RatingIK08
Indoor/OutdoorIndoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.5"
Product ColorIvory
Weight (Approximate)1.52 lb
Width5.5"

Product Information
Diameter5.5"
Mount TypeBox Mount, Ceiling Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution26MP
Field of ViewH: 109.0°-33.2°, V: 57.4°-18.7°, D: 132.0°-38.0°
HD RecordingYes
Lens TypeDC Auto Iris
Maximum ApertureF1.6
Maximum Frame Rate60 fps
Minimum Focal Length3.2 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3.1x

Warranty
Limited Warranty3 Year
