Description

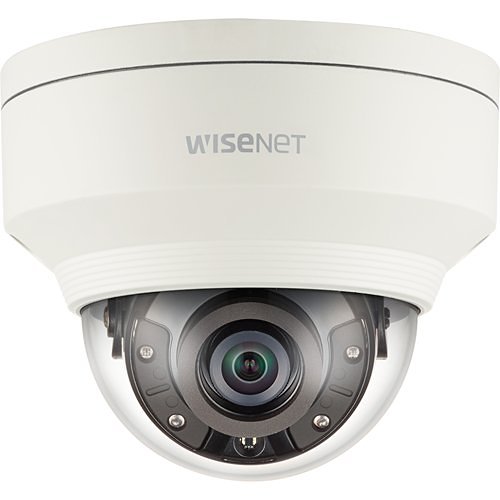

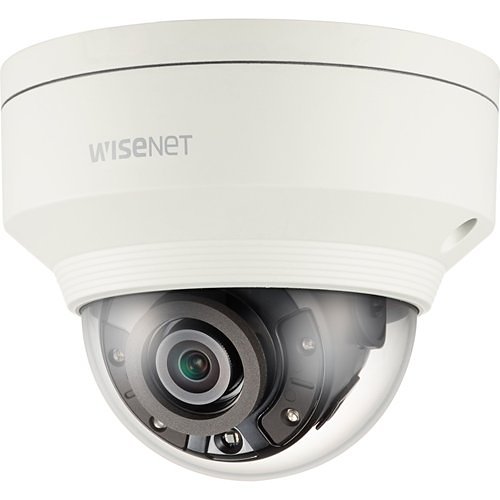

Introducing the WiseNet X equipped vandal-resistant outdoor network dome camera, featuring the powerful WiseNet 5 chipset. This high-performance surveillance solution offers 2MP resolution with Full HD 1080p capability, delivering up to 60 frames per second with WDR disabled or 30 fps with WDR enabled. The 4mm fixed lens provides an 88.6° field of view. It supports H.265, H.264, and MJPEG encoding formats, and incorporates WiseStream II compression technology for efficient bandwidth usage.

The camera boasts an impressive 150dB Wide Dynamic Range (WDR) and includes a USB port for straightforward installation. Advanced features include sophisticated video analytics, sound classification, True Day/Night functionality, dual SD card slots for extensive storage capacity, and a specialized hallway view mode. Additional capabilities such as High Light Compensation (HLC), defog detection with intuitive focus adjustment, Digital Image Stabilization (DIS) are integrated.

This durable camera is designed with an IP67 and IK10 rating for water and impact resistance, complying with the Nema 4X standard. It offers versatile power options including 12VDC, 24VAC, and Power over Ethernet (PoE), making it an ideal choice for robust security applications.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.015 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-6020R
Product ModelXNV-6020R
Product Name2MP IR Outdoor Dome
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4 mm
Maximum Focal Length4 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height3.8"
Weight (Approximate)1.36 lb

Power Description
Input Voltage12V DC

Product Information
Diameter4.7"
Mount TypeCorner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 88.6°, V: 47.5°, D: 104.8°
HD RecordingYes
Lens TypeFixed
Maximum ApertureF1.4
Maximum Frame Rate60 fps
Minimum Focal Length4 mm

Warranty
Limited Warranty3 Year
