Description

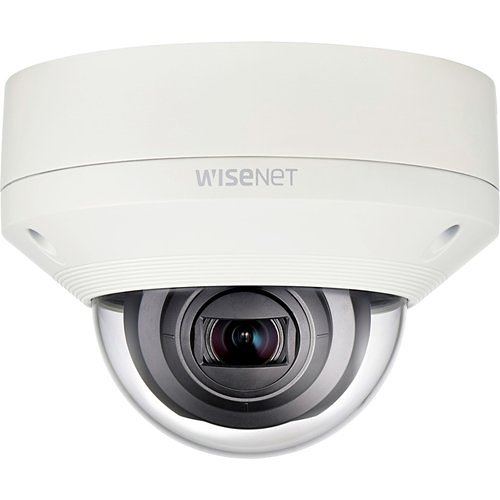

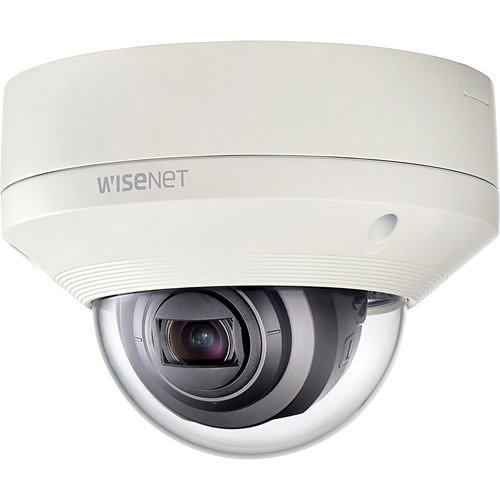

Presenting the Wisenet X series, featuring the Wisenet 5 chipset in a network outdoor vandal-resistant dome camera. This unit offers 2MP resolution with Full HD (1080p) quality, supporting up to 60fps with WDR off or 30fps with WDR on. Equipped with a motorized vari-focal lens providing 4.3x zoom (2.8~12mm) and a field of view ranging from 119.5° to 27.9°, it supports H.265, H.264, and MJPEG for versatile video encoding. Utilizing WiseStream II compression technology, it delivers efficient bandwidth management, complemented by 150dB WDR for exceptional clarity. Installation is facilitated by a USB port, while advanced video analytics and sound classification enhance surveillance capabilities. Additional features include True Day/Night functionality, dual SD card slots, hallway view, High Light Compensation (HLC), defog detection, simple focus, Digital Image Stabilization (DIS), and support for 12VDC/24VAC/PoE power supply. Built to withstand harsh environments, it boasts IP67, IK10, and NEMA 4X ratings, along with a built-in heater operational to -40°F.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.015 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-6080
Product ModelXNV-6080
Product Name2MP Vandal-Resistant Network Dome Camera
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Lens IncludedYes
Maximum Focal Length12 mm
Minimum Aperturef/1.6

Miscellaneous
FeaturesAudio Compression, Audio Detection, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-SNV6084
Model Number ReplacesSNV-6084

Physical Characteristics
ColorIvory
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height4.7"
Product ColorIvory
Weight (Approximate)2.17 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter6.3"
Mount TypeCeiling Mount, Corner Mount, Flush Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution26MP
Field of ViewH: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeDC Auto Iris, P-iris
Maximum ApertureF1.4
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Optical Zoom4.3x

Warranty
Limited Warranty3 Year
