Description

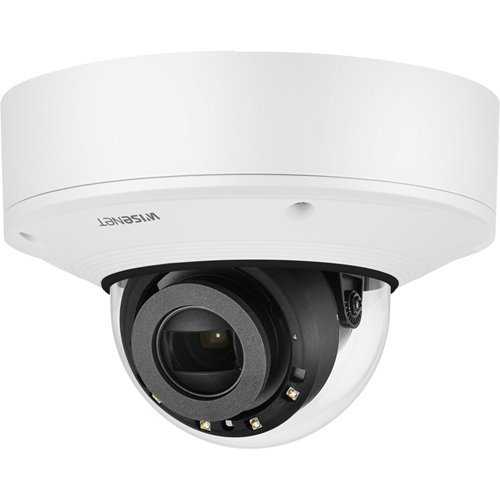

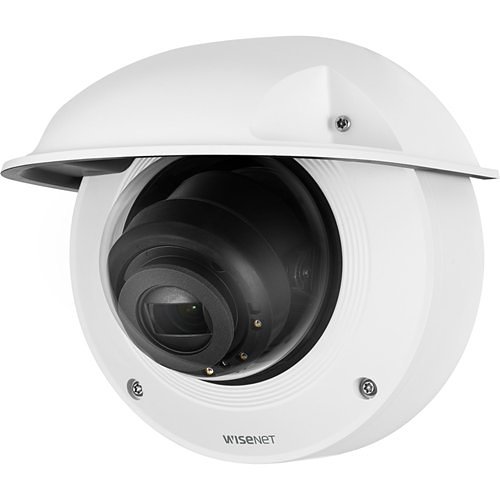

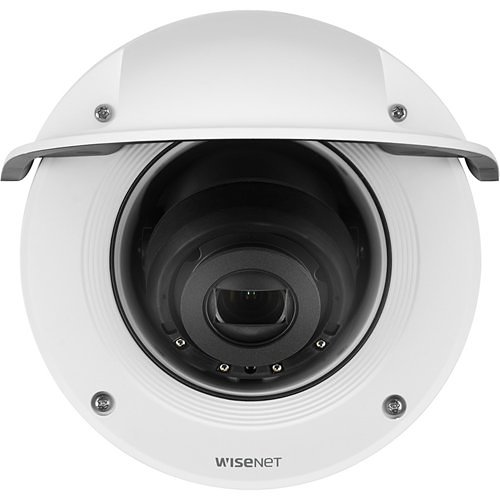

Enhance your property surveillance with the WiseNet X Series XNV-6081R, a 2MP Outdoor Network Dome Camera equipped with Night Vision, from Hanwha Techwin. This cutting-edge security camera features a 1/2.8″ 2MP CMOS sensor and a 2.8-12mm motorized varifocal lens, enabling video capture at up to 1920 x 1080 resolution at 60 fps, with a versatile field of view ranging from 119.5 to 27.9°. Night surveillance is optimized with IR LEDs, providing up to 164′ of night vision, and an automatic IR cut filter for seamless transition between color and black-and-white imaging, ensuring reliable day/night functionality. Advanced image enhancement capabilities include a 150 dB wide dynamic range and automatic white balance correction. Built to withstand challenging environments, the XNV-6081R comes in a robust IP67- and IK10-rated casing, perfect for outdoor and vandal-prone areas. Simplify installation with Power over Ethernet (PoE) technology, which combines data and power in a single cable.

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature140°F
Minimum Operating Temperature-58°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.015 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-6081R
Product ModelXNV-6081R
Product Name2MP IR Vandal Dome
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-12 mm
Maximum Focal Length12 mm
Minimum Aperturef/3.6

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor
Package Contents 2MP Vandal-Resistant Outdoor IR Network Dome Camera Weathercap Ivory Skin

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height4.9"
Weight (Approximate)3.86 lb
Width7.1"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter7.09"
Mount TypeConduit Mount, Pendant Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 119.5°-27.9°, V: 62.8°-15.7°, D: 142.1°-32.0°
HD RecordingYes
Lens TypeDC Auto Iris, P-iris
Maximum ApertureF1.4
Maximum Frame Rate60 fps
Minimum Focal Length2.8 mm
Night Vision TypeInfrared
Optical Zoom4.3x

Warranty
Limited Warranty3 Year
