Description

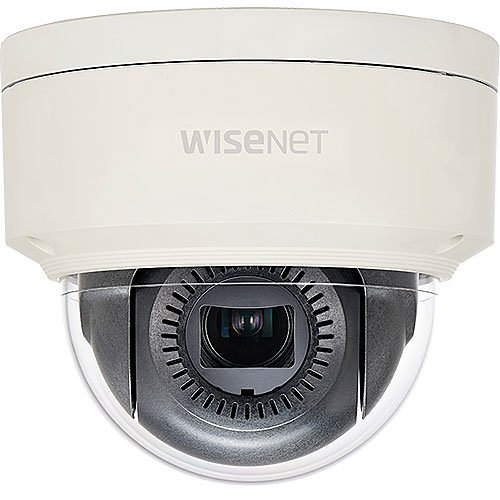

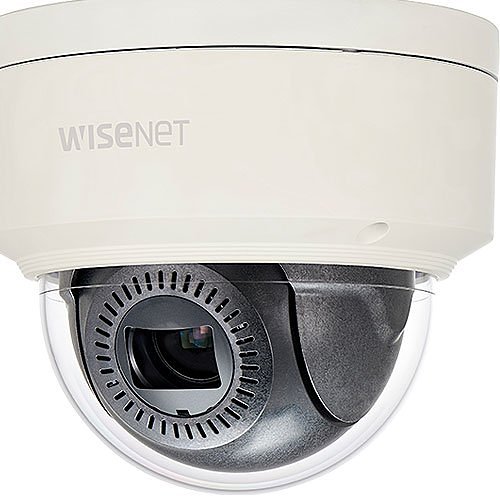

The Wisenet X network outdoor vandal-proof dome camera, equipped with the Wisenet 5 chipset, features an advanced eXtraLUX 1/2″ sensor and an F0.94 lens. This 2MP Full HD (1080p) camera delivers up to 60fps with a motorized vari-focal lens offering 4.0x zoom (4.1~16.4mm) with a field of view ranging from 100° to 26.2°. It supports triple codec formats: H.265, H.264, and MJPEG, enhanced by WiseStream II technology, and boasts a remarkable 150dB wide dynamic range (WDR). The camera includes a USB port for easy installation and provides advanced video analytics and sound classification features. Additional functionalities include true day/night (D/N) capability, dual SD card slots, hallway view, high light compensation (HLC), defog detection, digital image stabilization (DIS) with gyro sensor, and options for 12VDC/24VAC/PoE power supply. It is rated IP67 and IK10 for durability, Nema 4X certified, and operates in extreme temperatures ranging from -40°C to +55°C (-40°F to +131°F).

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.0004 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-6085
Product LineextraLUX
Product ModelXNV-6085
Product Name2MP eXtraLUX Vandal Outdoor PTRZ Camera
Product SeriesX
Product TypePTRZ Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length4.1-16.4 mm
Lens IncludedYes
Maximum Focal Length16.4 mm
Minimum Aperturef/0.94

Miscellaneous
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height5.5"
Product ColorIvory
Weight (Approximate)3.09 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter6.3"
Mount TypeBox Mount, Ceiling Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 100.0°-26.2°, V: 54°-14.8°, D: 116.0°-30.0°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeDC Auto Iris
Maximum ApertureF0.94
Maximum Frame Rate60 fps
Minimum Focal Length4.1 mm
Optical Zoom4x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
