Description

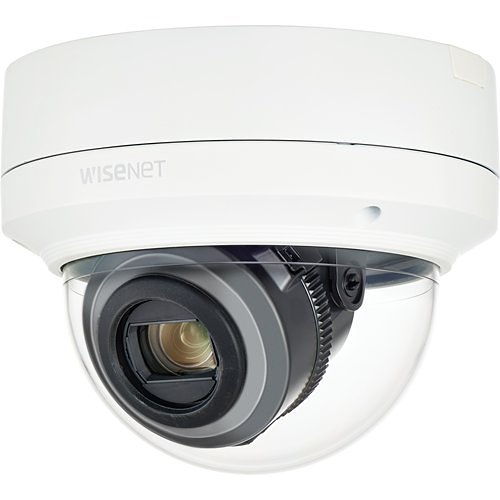

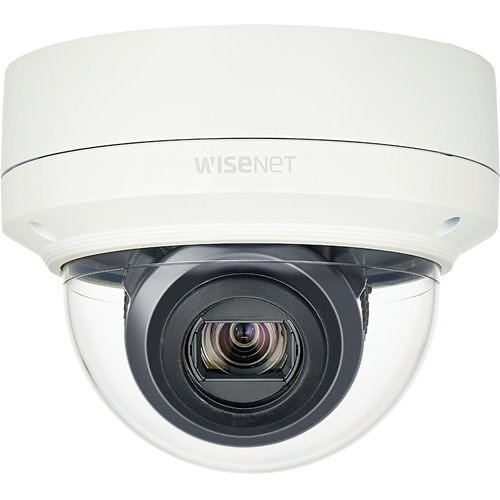

The Wisenet X series is equipped with the Wisenet 5 chipset, offering a robust network outdoor vandal dome camera with a 2MP resolution. It delivers Full HD (1080p) video at 60fps and features a powerful 12X optical zoom lens ranging from 5.2mm to 62.4mm, providing a field of view between 54.58º and 5.30º. This camera supports triple codec formats including H.265, H.264, and MJPEG, enhanced by WiseStream II technology for superior compression efficiency. It boasts a remarkable 150dB wide dynamic range (WDR) and includes a USB port for straightforward installation. The advanced video analytics and sound classification enhance security monitoring, while features such as true day/night capability, dual SD card slots, and Hallway View optimize performance in various environments. Additional functionalities include high light compensation (HLC), defog detection, digital image stabilization (DIS) with a gyro sensor, and it supports power input of 12VDC/24VAC/PoE. The camera is built to withstand harsh conditions with an IP67 and IK10 rating, Nema 4X standards, and operates effectively in temperatures from -40°C to +55°C (-40°F to +131°F).

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNV-6120
Product ModelXNV-6120
Product Name2MP Outdoor Network 12X Optical Zoom Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length5.2-62.4 mm
Lens IncludedYes
Maximum Focal Length62.40 mm
Minimum Aperturef/3

Miscellaneous
Features2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Enter/Exit Detector, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height5.1"
Product ColorIvory
Weight (Approximate)2.17 lb

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter6.3"
Mount TypeBox Mount, Ceiling Mount, Flush Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele)
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeVarifocal
Maximum Aperturef/1.6
Maximum Frame Rate60 fps
Minimum Focal Length5.2 mm
Optical Zoom12x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
