Description

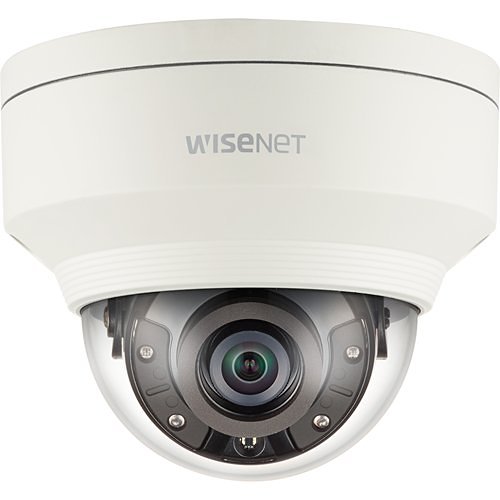

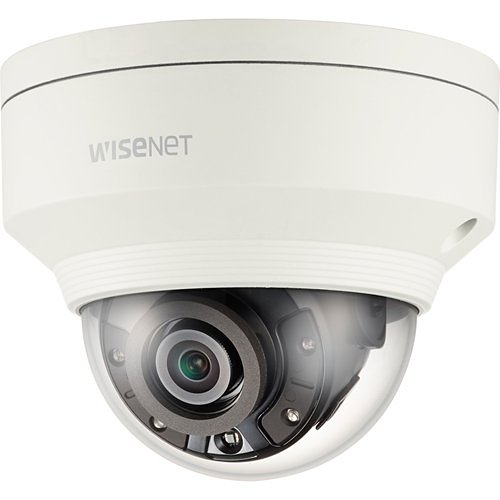

Presenting the WiseNet X series, featuring the advanced WiseNet 5 chipset in a robust network IR outdoor vandal dome camera. This innovative 5MP camera delivers up to 30fps with adjustable WDR, and comes equipped with a 3.7mm fixed focal lens offering a 97.5° field of view. Supporting H.265, H.264, and MJPEG formats, it utilizes WiseStream II compression technology for efficient bandwidth management. The camera boasts a 120dB wide dynamic range and high-powered IR LEDs with a coverage of up to 98 feet. Key features include true day/night capability, dual SD card slots, a specialized hallway view, highlight compensation, defog detection, and simple focus adjustment with digital image stabilization. It’s designed with a durable weatherproof and vandal-resistant housing rated at IP67, IK10, and NEMA 4X, supporting 12VDC, 24VAC, and PoE power inputs. This model also incorporates advanced video analytics and sound classification, accompanied by a convenient USB port for easy installation.

Camera
Night Vision Distance98.43 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution3096 x 2094

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.2 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-8020R
Product ModelXNV-8020R
Product Name5MP IR Outdoor Dome
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.7 mm
Lens IncludedYes
Maximum Focal Length3.7 mm

Miscellaneous
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height3.84"
Product ColorIvory
Weight (Approximate)1.38 lb
Width4.7"

Power Description
Input Voltage12V DC

Product Information
Diameter4.72"
Mount TypeBoard-in Type

Storage
Recording FormatsHD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 97.5°, V: 71.9°, D: 126.2°
HD RecordingYes
Lens TypeFixed
Maximum ApertureF1.6
Maximum Frame Rate30 fps
Minimum Focal Length3.7 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
