Description

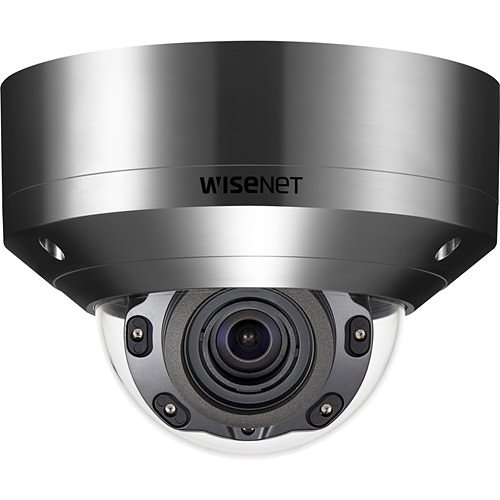

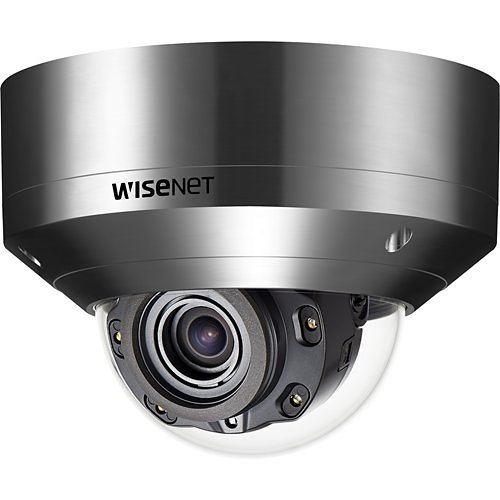

Experience the powerful capabilities of the Wisenet X series 5MP network IR stainless steel dome camera, driven by advanced Wisenet 5 technology. Featuring a 5-megapixel sensor with smooth 30fps video capture, this camera boasts a motorized 2.4x vari-focal lens (3.9-9.4mm) with a field of view ranging from 92.1° to 38.7°. Its triple codec support includes H.265, H.264, and MJPEG, alongside WiseStream II technology for efficient bandwidth management. Benefit from enhanced image clarity with 120dB Wide Dynamic Range (WDR), while the built-in USB port simplifies installation. Leverage cutting-edge video analytics and sound classification features, complemented by high-powered IR LEDs providing up to 164 feet of illumination. This versatile camera delivers true day/night functionality, supports dual SD cards, and offers specialized modes such as Hallway View, High Light Compensation (HLC), defog detection, and Digital Image Stabilization (DIS). Built to withstand harsh environments, it supports 12VDC/24VAC/PoE power options and is ruggedly designed with IP66, IP6K9K, IK10+, and NEMA 4X ratings, ensuring reliable performance in temperatures from -40°C to +55°C (-40°F to +131°F).

Camera
Night Vision Distance164.04 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP6K9K
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-40°F (-40°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNV-8080RSA
Product ModelXNV-8080RSA
Product Name5MP Network Stainless IR Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.9-9.4 mm
Lens IncludedYes
Maximum Focal Length9.4 mm
Minimum Aperturef/1.3

Miscellaneous
FeaturesAudio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorSilver
Color FamilySilver
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Product ColorSilver
Weight (Approximate)6.17 lb

Power Description
Input Voltage12V DC

Product Information
Diameter6.4"
Mount TypeCorner Mount, Pole Mount, Wall Mount

Storage
Recording FormatsHD

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution5MP
Field of ViewH: 92.1°(Wide)~38.7°(Tele) / V: 67.2°(Wide)~29.0°(Tele) / D:119.9°(Wide)~48.6°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.4
Maximum Frame Rate30 fps
Minimum Focal Length3.9 mm
Optical Zoom2.4x

Video
Analog Video Signal FormatCVBS
