Description

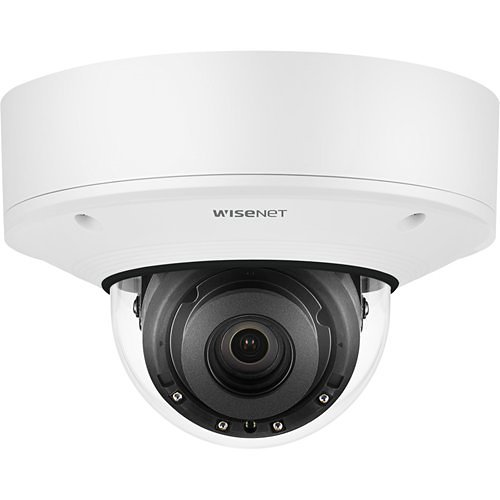

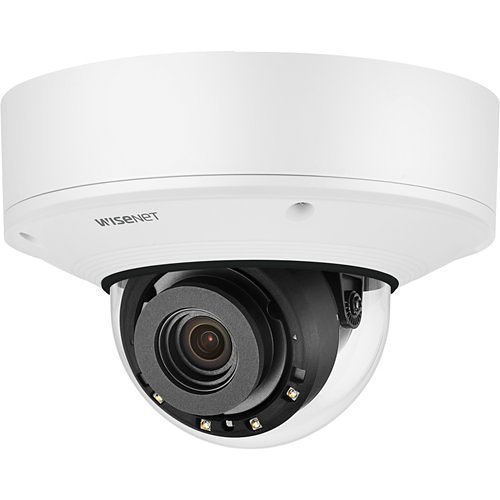

The Wisenet 7 X-plus series network IR vandal-proof outdoor camera features a 6MP sensor capable of capturing footage at 30fps. It comes with a motorized 3x vari-focal lens ranging from 2.8 to 8.4mm, and supports triple codecs H.265, H.264, and MJPEG with WiseStreamII compression technology. The camera is equipped with Extreme Wide Dynamic Range (WDR) and offers convenient installation with USB and CVBS ports. It includes advanced video and business analytics, sound classification, and powerful IR LEDs with a range of 131.23 feet. Features such as shock detection, audio playback, true day/night functionality, dual SD card slots, hallway view, High Light Compensation (HLC), defog detection, and Digital Image Stabilization (DIS) with a gyro sensor enhance its performance. The camera is versatile in its power options with support for 12VDC, 24VAC, or PoE. It boasts robust protective ratings of IP67, IP66, IP6K9K, IK10, and Nema 4X, and operates effectively within a temperature range of -50°C to +60°C (-58°F to +140°F).

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
NDAA CompliantYes
TAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity95%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNV-8082R
Product LineWiseNet
Product ModelXNV-8082R
Product Name6MP Network IR Vandal Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-8.4 mm
Lens IncludedYes
Maximum Focal Length8.40 mm
Minimum Aperturef/1.2

Miscellaneous
FeaturesAudio Compression, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorIndoor, Outdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth7.1"
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)4.19 lb
Width7.1"

Power Description
Input Voltage12V DC

Product Information
Diameter7.1"
Mount TypeCeiling Mount, Corner Mount, Pole Mount, Wall Mount

Storage
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution6MP
Field of ViewH: 114°(Wide)~40.2°(Tele) / V: 62.0°(Wide)~22.5°(Tele) / D: 133.0°(Wide)~46.3°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/2.8
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
