Description

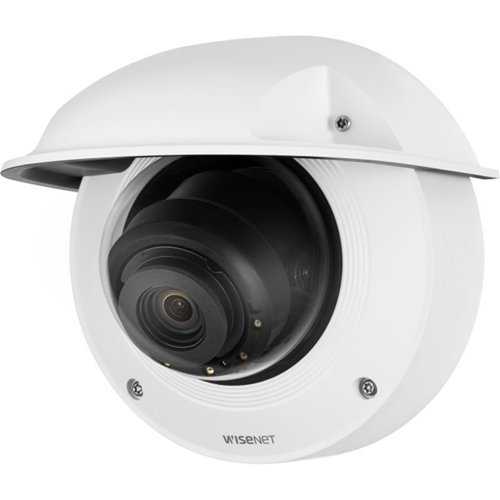

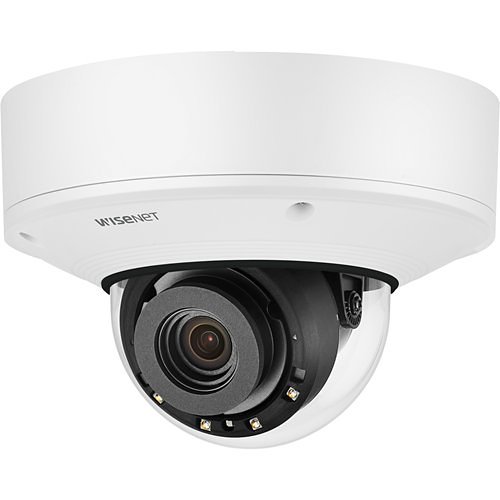

The Wisenet 7 X-plus series network IR vandal-resistant outdoor camera boasts 4K resolution (8MP Max) at 30fps with a motorized 3x vari-focal lens (2.8~8.4mm). It supports triple codec compression including H.265, H.264, and MJPEG, enhanced by WiseStreamII technology. Equipped with Extreme WDR, the camera features USB and CVBS ports for simplified installation. It offers advanced video analytics, sound classification, and business analytics capabilities. The high-powered IR LEDs provide a range of up to 131.23 feet. Additional features include shock detection, audio playback, true day/night functionality, dual SD card slots, hallway view, HLC, defog detection, and a gyroscopic DIS. The camera operates on 12VDC/24VAC/PoE power systems and is built to withstand harsh conditions with IP67/IP66/IP6K9K ratings, IK10, and Nema 4X standards, functioning in temperatures of -50°C to +60°C (-58°F to +140°F).

Camera
Night Vision Distance131.23 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67, IP6K9K
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature140°F (60°C)
Minimum Operating Temperature-58°F (-50°C)
Operating Humidity95%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNV-9082R
Product ModelXNV-9082R
Product Name4K Network IR Vandal Dome Camera
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.8-8.4 mm
Lens IncludedYes
Maximum Focal Length8.40 mm
Minimum Aperturef/2.8

Miscellaneous
FeaturesBack Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Waterproof
Form FactorDome
Height5"
Product ColorWhite
Weight (Approximate)4.19 lb
Width7"

Power Description
Input Voltage12V DC, 24V AC

Product Information
Diameter7.1"
Mount TypeCeiling Mount, Pole Mount, Wall Mount

Storage
Recording Formats4K
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution8MP
Field of ViewH: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele)
HD RecordingYes
Lens TypeVarifocal
Maximum Aperturef/1.2
Maximum Frame Rate30 fps
Minimum Focal Length2.8 mm
Night VisionYes
Night Vision TypeInfrared
Optical Zoom3x

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Years
