Description

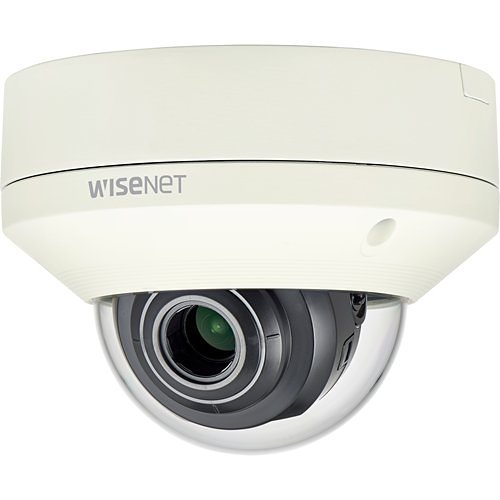

Introducing the Wisenet X, a high-performance network outdoor vandal-resistant dome camera, powered by the advanced Wisenet 5 chipset. This 2MP surveillance device delivers Full HD (1080p) quality video at 60 frames per second and features a motorized vari-focal lens with 3.1x zoom (3.2~10mm), offering a viewing angle from 109° to 33.2°. The camera supports triple codec technology (H.265/H.264/MJPEG) with WiseStream II for optimized bandwidth. It boasts 120dB Wide Dynamic Range (WDR) and offers a USB port for hassle-free installation. Additional features include true Day/Night (D/N) functionality, single SD card support, Hallway View mode, High Light Compensation (HLC), defog detection, Digital Image Stabilization (DIS), Power over Ethernet (PoE), and robust protection with IP66 and IK10 ratings, suitable for extreme temperatures ranging from -40°C to +55°C (-40°F to +131°F).

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-40°F
Operating Humidity

Exposure
Longest Shutter Speed1/12000 Second
Minimum Illumination0.003 lux
Shortest Shutter Speed2 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberXNV-L6080
Product ModelXNV-L6080
Product Name2MP Outdoor Dome
Product SeriesX
Product TypeDome Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.2-10 mm
Lens IncludedYes
Maximum Focal Length10 mm
Minimum Aperturef/1.6

Miscellaneous
FeaturesBack Light Compensation (BLC), Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorIvory
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height4.7"
Product ColorIvory
Weight (Approximate)2.1 lb

Product Information
Diameter6.3"
Mount TypeBox Mount, Ceiling Mount, Pole Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution26MP
Field of ViewH: 109.0°-33.2°, V: 57.4°-18.7°, D: 132.0°-38.0°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeDC Auto Iris
Maximum ApertureF1.6
Maximum Frame Rate60 fps
Minimum Focal Length3.2 mm
Optical Zoom3.1x

Warranty
Limited Warranty3 Year
