Description
The LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera is a fully NDAA/TAA compliant surveillance solution manufactured in Taiwan. LILIN’s security products are compatible with numerous home automation systems.

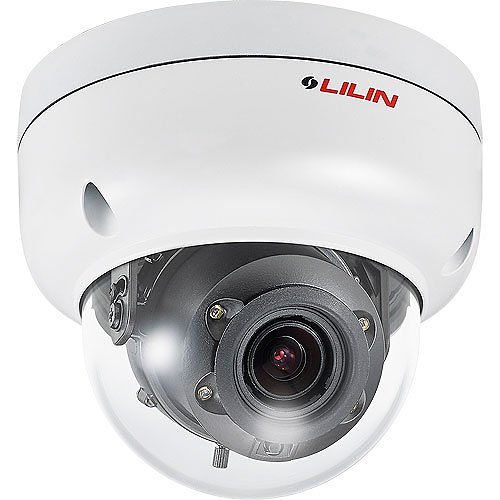

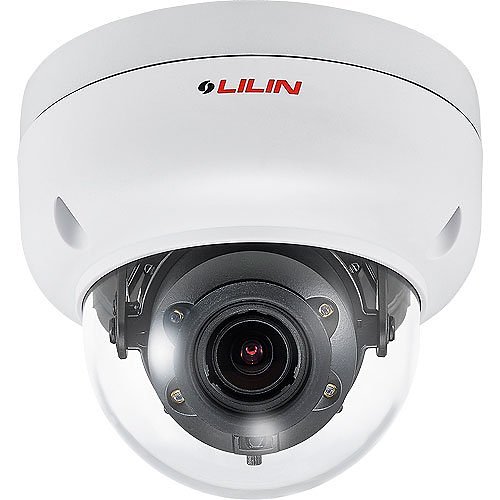

LILIN Z5R6422X3 1080P Fixed IR Vandal Resistant Dome IP Camera, 2.8-12mm Lens, White, White
in stock
In Stock
$219.38
- Full HD 2MP CMOS sensor for high-definition video capture
- 2.8 – 12 mm auto zoom and focus motorized lens for flexible surveillance
- Compliant with NDAA and TAA standards for secure operations
- 30fps recording at 1920 × 1080 resolution for smooth footage
- Dual streaming of H.265 and H.264 encoded video streams
- High-efficiency IR LED for night vision up to 100 feet
- Supports up to 128GB Micro SD/SDHC/SDXC cards for continuous recording (card not included)
- IP67 rated for resistance against rain and dust
- IK10-rated vandal-resistant housing for durability
- Compatible with Onvif protocol for interoperability
| Camera | |
| Night Vision Distance | 98.43 ft |
| Wide Dynamic Range | Yes |
| Certifications | |
| Ingress Protection Rating | IP67 |
| NDAA Compliant | Yes |
| TAA Compliant | Yes |
| Display & Graphics | |
| Color Supported | Color, Monochrome |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Operating Humidity | 90% |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/20000 Second |
| General Information | |
| Brand Name | Merit LILIN |
| Manufacturer | Merit LILIN Ent. Co., Ltd |
| Manufacturer Part Number | Z5R6422X3 |
| Product Line | H.265 |
| Product Model | Z5R6422X3 |
| Product Name | 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| Product Series | Z5 |
| Product Type | Network Camera |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8 mm |
| Lens Included | Yes |
| Maximum Focal Length | 12 mm |
| Minimum Aperture | f/3.3 |
| Miscellaneous | |
| Features | 3D Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Wide Dynamic Range (D-WDR), Password Protection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Outdoor |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Durability | Dust Resistant, Impact Resistant, Rain Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Weight (Approximate) | 1.68 lb |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.7" |
| Storage | |
| Recording Formats | Full HD |
| Storage Type | Memory Card |
| Technical Information | |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Field of View | 105.9° (W) - 36.5° (T) (H) 56.3° (W) - 20.4° (T) (V) 128.0° (W) - 41.6° (T) (D) |
| HD Recording | Yes |
| Lens Type | Varifocal |
| Maximum Aperture | f/1.8 |
| Maximum Frame Rate | 30 fps |
| Minimum Focal Length | 2.8 mm |
| Night Vision | Yes |
| Night Vision Type | Infrared |
| Optical Zoom | 4.3x |
