Description

**Specialized Onboard Surveillance Solution for Rail Transportation**

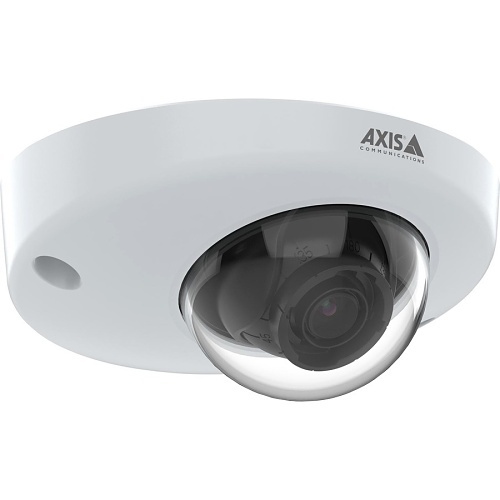

This robust dome camera is specifically engineered for onboard monitoring in railway vehicles such as trains and trams, capable of enduring shocks and vibrations while maintaining high-performance across diverse lighting conditions.

High-Performance Onboard Camera

This 2 MP surveillance camera excels under variable lighting conditions. Equipped with **Forensic WDR**, it delivers clear images in scenes with both light and dark areas. Meanwhile, **Lightfinder** technology enables full-color capture even in extremely low light settings. With its traffic light mode feature, the camera can accurately identify traffic light colors in dark environments. Multiple lens options are available for customizable fields of view, enhancing tailored monitoring requirements.

Built for Challenging Transit Environments

The camera meets key transportation industry standards, including EN50155 and EN45545, demonstrating its resilience for onboard use. It is IK10, IP66, and IP67-rated, and offers flexible installation options with M12 or RJ45 connectors. When paired with **AXIS TP3826-E housing**, it can be installed externally on vehicles, enduring severe weather conditions.

Security and Cost Efficiency in One

Featuring integral **cybersecurity** measures, this onboard camera helps thwart unauthorized access, safeguarding your surveillance system. **Axis Edge Vault** enhances security by protecting device IDs and streamlining the authorization process across networks. Additionally, **Axis Zipstream** technology significantly reduces storage and bandwidth needs without sacrificing image quality, ensuring high forensic usability and cost savings. Overall, it’s an ideal surveillance solution for demanding onboard environments.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66, IP67

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)

General Information
Brand NameAxis Communications
ManufacturerAxis Communications
Manufacturer Part Number02670-001
Product LineP
Product ModelP3905-R Mk III
Product NameP3905-R Mk III Dome Camera
Product SeriesP39
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.60 mm

Miscellaneous
FeaturesRugged Design, SD Card Local Storage, Wide Dynamic Range
Impact Protection RatingIK10

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesZ4-01072001
Model Number Replaces01072-001

Physical Characteristics
ColorWhite
DurabilityDustproof, Impact Resistant, Shock Resistant, Vibration Resistant, Waterproof
Form FactorDome

Product Information
Mount TypeVehicle Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewHorizontal field of view87.6 ° Vertical field of view46.7 °
HD RecordingYes
Lens TypeFixed
Maximum Frame Rate45 fps
Minimum Focal Length3.6 mm
