Description

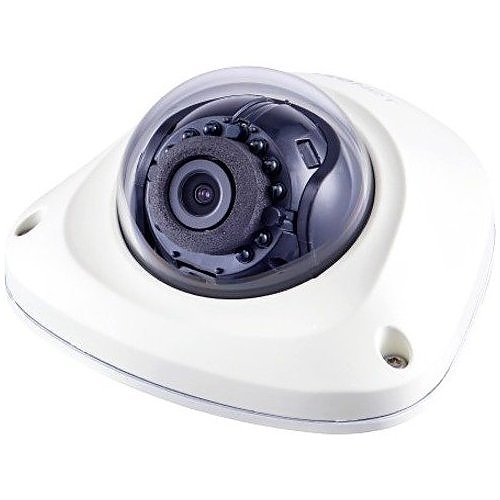

This compact network outdoor vandal-resistant dome camera features 2MP resolution at 30fps and is equipped with a 3.6mm fixed focal lens offering a 94.8° field of view. It supports triple codecs including H.265, H.264, and MJPEG with Wisestream II technology for efficient compression. The camera boasts 120dB Wide Dynamic Range (WDR) and Infrared LEDs with a range of 49 feet. Additional features include defocus detection, hallway view, one-way audio, and SD card support. It is equipped with advanced video analytics, CVBS output, and operates on an open platform. With an IP66 and IK10 rating for weather and impact resistance, this device is powered through Power over Ethernet (PoE).

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1920 x 1080

Environmental Conditions
Maximum Operating Temperature131°F
Minimum Operating Temperature-22°F
Operating Humidity

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12,000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Vision
Manufacturer Part NumberANV-L6023R
Product ModelANV-L6023R
Product Name2MP IR Flateye Camera
Product SeriesA
Product TypeFlateye Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.6 mm

Miscellaneous
Features,, , NEMA4X support, 2 MP (1920 x 1080) resolution, 3.6mm lens w/ 94.8° HFoV, 30fps at all resolutions (H.265/H.264), Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, H.265/H.264, MJPEG codec support, Multiple streaming, Hallway View, WiseStream II support, IR viewable length 15m, Micro SD/SDHC memory slot (Max. 32GB), PoE
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Others
ADI Part Number ReplacesSQ-QNV6023R
Model Number ReplacesQNV-6023R

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorWhite
Weight (Approximate)0.65 lb

Product Information
Mount TypeDesktop Mount, Rack Mount, Wall Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 94.8°, V: 49.3°, D: 114.3°
HD RecordingYes
Lens TypeFixed Focus
Maximum ApertureF2.0
Maximum Frame Rate30 fps
Minimum Focal Length3.6 mm
Night VisionYes
Night Vision TypeInfrared

Warranty
Limited Warranty3 Year
