Description

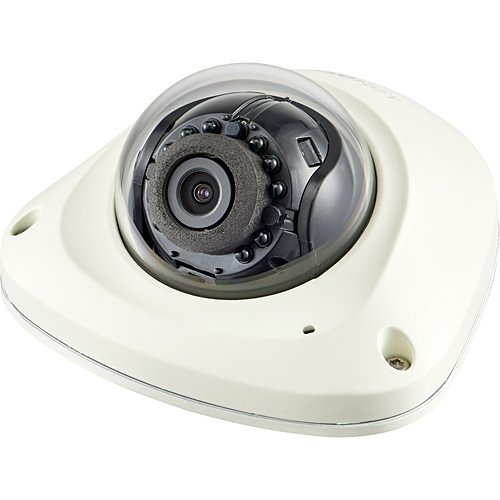

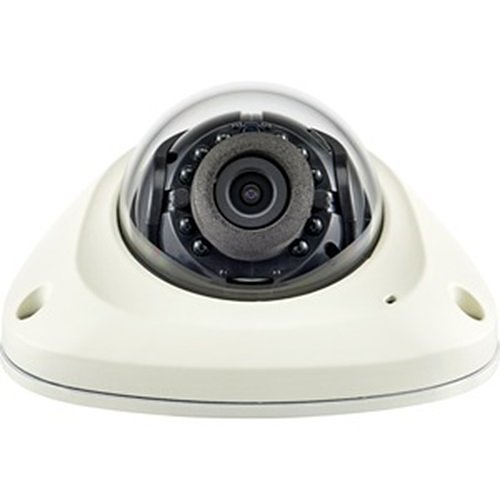

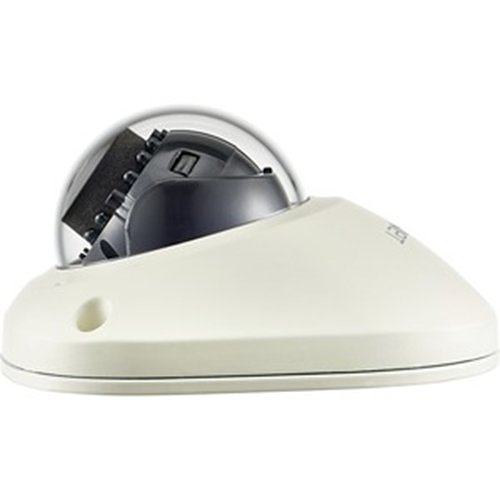

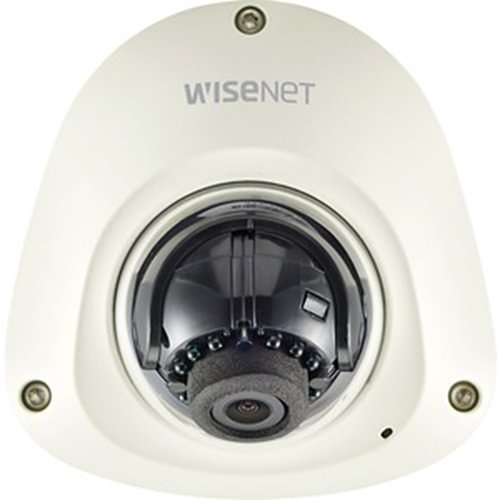

The QNV-6024RM mobile network camera is packed with industry-leading features, delivering 2 megapixel 1080p high-definition video through its 3.6mm fixed lens. It offers Wide Dynamic Range (WDR) and is equipped with 15-meter infrared LEDs for enhanced visibility. The camera’s Hallway View mode is ideal for optimizing images in portrait orientation and includes an integrated microphone for audio capture. Designed for transportation applications, the QNV-6024RM incorporates an M12 connector for secure installation and boasts a vibration-resistant build, adhering to EN50155 and EN50121 standards for reliable video surveillance in any transport setting. With a robust IP66 and IK10 rating, this camera is engineered to perform consistently in challenging environments, providing protection against harsh weather conditions and potential tampering or physical impact.

Camera
Night Vision Distance49.21 ft
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed1/5 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberQNV-6024RM
Product ModelQNV-6024RM
Product Name2MP Mobile IR Flat Camera
Product SeriesQ
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length3.6 mm
Lens IncludedYes
Maximum Focal Length3.6 mm

Miscellaneous
FeaturesAuto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Product ColorIvory
Weight (Approximate)10.41 oz

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH: 94.8° / V: 49.3° / D: 114.3°
HD RecordingYes
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate30 fps
Minimum Focal Length3.6 mm
Night VisionYes
Night Vision TypeInfrared

Video
Analog Video Signal FormatCVBS

Warranty
Limited Warranty3 Year
