Description

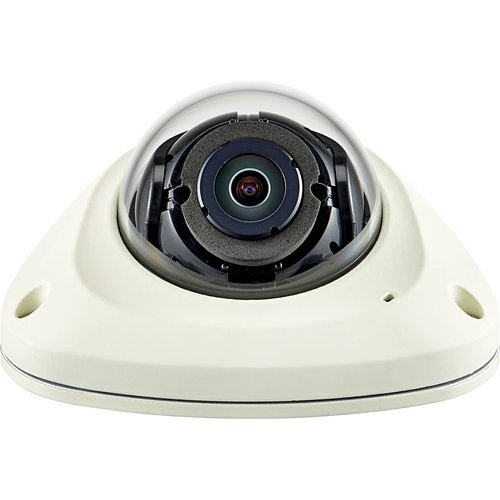

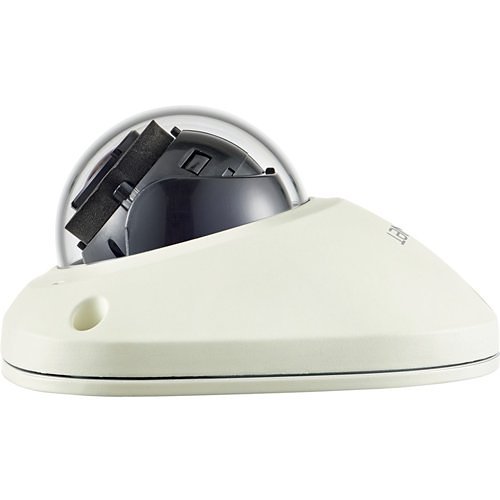

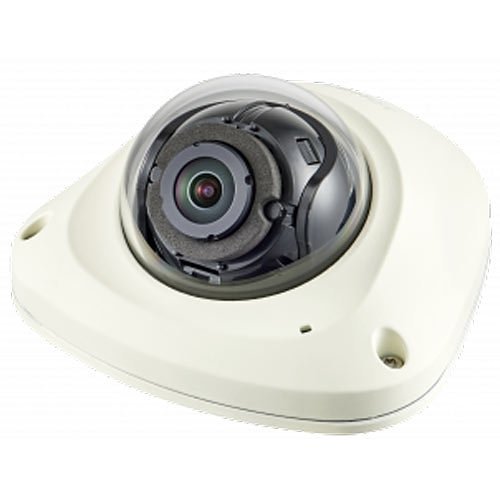

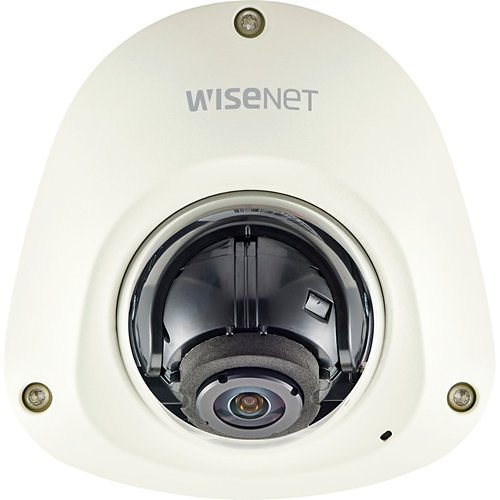

Explore the capabilities of the Wisenet X, a state-of-the-art outdoor vandal-resistant dome surveillance camera equipped with the powerful Wisenet 5 chipset. This 2MP security camera delivers Full HD video (1080p) at 60fps through a 2.4mm fixed lens offering a wide 135.4° field of view. It supports triple codec technology with H.265, H.264, and MJPEG formats enhanced by WiseStream II for efficient bandwidth usage. Benefit from exceptional image quality even in challenging lighting with its 150dB Wide Dynamic Range (WDR) and electrical Day/Night functionality. Installation is made simple with a USB port, while advanced video analytics and sound classification enhance security monitoring. Additional features include a single SD card slot, hallway view, Highlight Compensation (HLC), defog detection, digital image stabilization (DIS), Power over Ethernet (PoE), and rugged durability compliant with IP66, IK10, and NEMA 4X standards. Please note, the M12 connector requires an M12 to RJ45 adapter, which is not included.

Camera
Wide Dynamic RangeYes

Certifications
Ingress Protection RatingIP66
NDAA CompliantYes

Display & Graphics
Color SupportedColor, Monochrome
Maximum Video Resolution1600 x 1200

Environmental Conditions
Maximum Operating Temperature131°F (55°C)
Minimum Operating Temperature-22°F (-30°C)
Operating Humidity90%

Exposure
Longest Shutter Speed2 Second
Shortest Shutter Speed1/12000 Second

General Information
Brand NameHanwha Vision
ManufacturerHanwha Group
Manufacturer Part NumberXNV-6012M
Product ModelXNV-6012M
Product Name2MP Mobile Vandal Dome
Product SeriesX
Product TypeNetwork Camera

Interfaces/Ports
Network (RJ-45)Yes

Lens
Focal Length2.4 mm
Lens IncludedYes
Maximum Focal Length2.40 mm

Miscellaneous
FeaturesAlarm Triggering, Audio Compression, Auto Tracking, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, White Balance
Impact Protection RatingIK10
Indoor/OutdoorOutdoor

Network & Communication
Remote ManagementYes

Physical Characteristics
ColorWhite
Color FamilyWhite
Depth3.9"
DurabilityDustproof, Impact Resistant, Vandal Resistant, Waterproof
Form FactorDome
Height2"
Product ColorIvory
Weight (Approximate)10.41 oz
Width3.9"

Product Information
Mount TypePole Mount

Storage
Recording FormatsFull HD
Storage TypeMemory Card

Technical Information
Connectivity TechnologyWired
Effective Camera Resolution2MP
Field of ViewH : 135.4° / V : 71.2° / D : 161.6°
HD RecordingYes
Lens Mount TypeBoard Mount
Lens TypeFixed
Maximum Aperturef/2
Maximum Frame Rate60 fps
Minimum Focal Length2.4 mm

Warranty
Limited Warranty3 Year
